Product Information

R294C0351003

R294C0351003 electronic component of Radiall

Datasheet

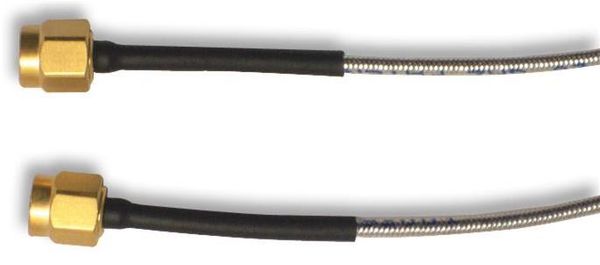

CABLE ASSEMBLY, HF, SMA M/M, 0.25M
Manufacturer: Radiall
This product is classified as Large/Heavy, additional shipping charges may apply. A customer service representative may contact you after ordering to confirm exact shipping charges



Price (USD)
N/A

 More Buying Options & Price Grid(s)

Availability Price Quantity
0 - WHS 1

MOQ : 1
Multiples : 1

Stock Image

R294C0351003
Radiall

1 : USD 59.355
5 : USD 53.4834
10 : USD 50.1808
25 : USD 49.2509
50 : USD 47.7835
100 : USD 46.4953
N/A

Read More Specifications


Manufacturer
Product Category
Impedance
Cable Length
Jacket Colour
Brand
Connector To Connector
Cable Length - Imperial
Cable Length - Metric
Svhc
Cable Assembly Type
Connector Type A
Connector Type B
External Diameter
Lead Length
Operating Temperature Max
Operating Temperature Min
Overall Length
LoadingGif

Notes:- Show Stocked Products With Similar Attributes.

More Products By Manufacturer "Radiall"

Image Description
R299137800 electronic component of Radiall R299137800

RF Connectors / Coaxial Connectors R-MCX / SMT SWITCH SMT Reel OF 200
Stock : 271

R296601132 electronic component of Radiall R296601132

CABLE ASSEMBLY 36", 2 EA. R141082, RG223
Stock : 0

R296701967 electronic component of Radiall R296701967

CABLE ASSEMBLY, 19.5 INCHES TNC STR TO MCX STR SOLDER TYPE
Stock : 0

R299137800W electronic component of Radiall R299137800W

RF Connectors / Coaxial Connectors SMT STG SWITCH
Stock : 49

R294C0351005 electronic component of Radiall R294C0351005

CABLE ASSEMBLY, HF, SMA M/M, 0.25M
Stock : 0

R294C0351004 electronic component of Radiall R294C0351004

CABLE ASSEMBLY, HF, SMA M/M, 0.5M
Stock : 0

R294C0351006 electronic component of Radiall R294C0351006

CABLE ASSEMBLY, HF, SMA M/M, 0.5M
Stock : 0

R299137801 electronic component of Radiall R299137801

RF Connectors / Coaxial Connectors R299137000 ON Reel OF 900
Stock : 854

R299521012 electronic component of Radiall R299521012

Wire Stripping & Cutting Tools Acc. Replacement Blades Green
Stock : 12

R299510000 electronic component of Radiall R299510000

Wire Stripping & Cutting Tools TOOL / STRIPPING TOOL FOR CABLE DIA 2.5 TO 7.6
Stock : 2

More Products By Category "RF Cable Assemblies"

Image Description
R294C0351005 electronic component of Radiall R294C0351005

CABLE ASSEMBLY, HF, SMA M/M, 0.25M
Stock : 0

JX0C-0005NL electronic component of Pulse JX0C-0005NL

Modular Connectors / Ethernet Connectors CONN,RJ45,1X1,100D,1:1,TY NPB
Stock : 240

PVM25L2B/UNV1 electronic component of Eaton PVM25L2B/UNV1

LED LUMINAIRE, 232W, 277VAC, COOL WHITE
Stock : 1

Z8523016VSG00TR electronic component of ZiLOG Z8523016VSG00TR

Z85230 Series 5 V Surface Mount Enhanced Serial Communication Controller PLCC-44
Stock : 0

Z8523010VSG00TR electronic component of ZiLOG Z8523010VSG00TR

Z85230 Series 5 V Surface Mount Enhanced Serial Communication Controller PLCC-44
Stock : 0

Z84C4406VEG00TR electronic component of ZiLOG Z84C4406VEG00TR

Z84C44 Series 6 MHz 5 V Surface Mount Serial Input/Output Controller - PLCC-44
Stock : 0

PVM-16V121MG70E-R2 electronic component of Elna PVM-16V121MG70E-R2

CAP POLYMER 120UF 20% 16V SMD
Stock : 0

R2AA-BA electronic component of Rayovac R2AA-BA

Industrial Xtreme Flashlight with 2 AA Alkaline Batteries
Stock : 0

PVM-10V680ME60E-R2 electronic component of Elna PVM-10V680ME60E-R2

CAP POLYMER 68UF 20% 10V SMD
Stock : 0

PVM-10V470ME60E-R2 electronic component of Elna PVM-10V470ME60E-R2

CAP POLYMER 47UF 20% 10V SMD
Stock : 0

Additional Infomation About Product

TECHNICAL DATA SHEET PART NUMBER : R294C0351003 Fiche technique Rfrence Dpartement TAI CABLE ASSEMBLY ISSUE : 0728A 238 Rue Emile Romanet cordon Edition 38340 VOREPPE DATE : 10/07/2007 Date CUSTOMER : SPECIFICATION : NA ISSUE : NA DATE : NA Client Spcification Issue Date All dimensions are in mm / Toutes les dimensions sont indiques en mm 1 2 Cble 250 5 Connectors designation: Connector 1: R125.052.000 Connector 2: R125.052.000 Dsignation connecteurs Connecteur 1 Connecteur 2 SMA STRAIGHT PLUG SMA STRAIGHT PLUG Stainless steel gold Stainless steel gold Torque wrench : NA N.cm Torque wrench : NA N.cm Couple de serrage Couple de serrage Cable designation / Dsignation cble: HAND-FORMABLE CABLE .085 Protective Jacket / Gaine de protection: (Unjacketed)Tin Soaked braid Outer diameter / Diamtre extrieur : 2.21 mm max Marking / Marquage: NA ELECTRICAL CHARACTERISTICS / Caractristiques lectriques Caracteristic impedance 50 1 Ohms Impdance caractristique Frequency band : DC - 18 GHz Bande de frquence Max insertion loss : 1.20 dB at 18GHz at 20C Pertes d insertion max Max return loss : 1.35 :1 (16.53dB) in the Frequency band : DC - 18GHz ROS max MECHANICAL CHARACTERISTICS / Caractristiques mcaniques CUSTOMER S APPROVAL Static bending radius : 3.2 mm Rayon de courbure statique Service or Company s stamp Dynamic bending radius : 9.5 mm Rayon de courbure dynamique Name Cable crush resistance : TBD N / 100mm Date Rsistance l crasement du cble Life (Connectors) : 500 Cycles Nbre de manuvre connecteurs ENVIRONMENTAL CHARACTERISTICS / Caractristiques environnementales Temperature range : -65/+105C Gamme de temprature RAYMOND G. 0728A 10/07/2007 First issue DUVAL P. Name / nom Issue / Edition Date Modification Checked byX-ON Electronics Largest Supplier of Electrical and Electronic Components Click to view similar products for radiall manufacturer: Other Similar products are found below : F760858219 8959-1511-004 5919-1503-000 7101-1541-010 7105-1561-010 MD11-035 81-6201-0450 9074-9513-000 9620-9003-151 R113425097 R114305000W R124075210 R125055000 R125512000W R141154000W R141572000 R143012000 R143235161W R166268000 R176019000 R191841001W R282102000 R282744220 R282918120 R404770000 R414430150 R414520150 R433514700 R570022105 R570123005 R570363010 R570442000 R570E52010 R574402410 R585423230 R114425000 R124510000 R125052500 R125320020W R141331500W R162017000W R176404000 R191970091 R282120010 R282750000 R317270000 R404110150 R404280150 R404755000 R413210150

HS Compliance

Tariff Desc

8536.69.90 JACKS, CONNECTION, DATA CABLE Op. 25.09.2008 Dec. 12.12.2008 - TC 0832745
