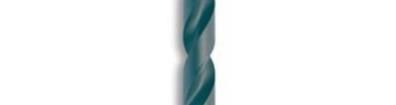

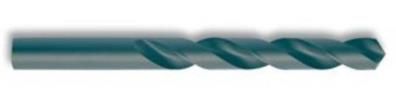

Twist drills Twist drills DIN 338 type N HSS ground, with split point 1.1 1.1 Point cut: helical point Highly efficient standard drill suitable for all Applications: for steel and cast-steel alloyed from 3,0 mm usual drilling work in all normal materials. High and unalloyed up to 900 N/mm strength, grey with split point DIN 1412 C rotational precision. cast, malleable cast iron, die-cast metal, iron Point angle: 118 sinter, nickel-silver, graphite cast iron, short- Helix angle: 20-30 chipping aluminium alloys, bronze and brass.. tolerance: h8 Surface: bright Right-hand cutting Packing unit: 0,30 mm up to 10,40 mm in plastic box of 10 10,50 mm up to 16,00 mm in plastic box of 5 Total length Flute length Article no. Price Total length Flute length Article no. Price mm mm mm mm mm mm each each 0,30 19 3 214 003 4,75 80 47 214 0475 0,40 20 5 214 004 4,80 86 52 214 048 0,50 22 6 214 005 4,90 86 52 214 049 0,60 24 7 214 006 5,00 86 52 214 050 0,70 28 9 214 007 5,10 86 52 214 051 0,80 30 10 214 008 5,20 86 52 214 052 0,90 32 11 214 009 5,25 86 52 214 0525 1,00 34 12 214 010 5,30 86 52 214 053 1,10 36 14 214 011 5,40 93 57 214 054 1,20 38 16 214 012 5,50 93 57 214 055 1,25 38 16 214 0125 5,60 93 57 214 056 1,30 38 16 214 013 5,70 93 57 214 057 1,40 40 18 214 014 5,75 93 57 214 0575 1,50 40 18 214 015 5,80 93 57 214 058 1,60 43 20 214 016 5,90 93 57 214 059 1,70 43 20 214 017 6,00 93 57 214 060 1,75 43 20 214 0175 6,10 101 63 214 061 1,80 46 22 214 018 6,20 101 63 214 062 1,90 46 22 214 019 6,25 101 63 214 0625 2,00 49 24 214 020 6,30 101 63 214 063 2,10 49 24 214 021 6,40 101 63 214 064 2,20 53 27 214 022 6,50 101 63 214 065 2,25 53 27 214 0225 6,60 101 63 214 066 2,30 53 27 214 023 6,70 101 63 214 067 2,40 57 30 214 024 6,75 101 63 214 0675 2,50 57 30 214 025 6,80 109 69 214 068 2,60 57 30 214 026 6,90 109 69 214 069 2,70 61 33 214 027 7,00 109 69 214 070 2,75 61 33 214 0275 7,10 109 69 214 071 2,80 61 33 214 028 7,20 109 69 214 072 2,90 61 33 214 029 7,25 109 69 214 0725 3,00 61 33 214 030 7,30 109 69 214 073 3,10 65 36 214 031 7,40 109 69 214 074 3,20 65 36 214 032 7,50 109 69 214 075 3,25 65 36 214 0325 7,60 117 75 214 076 3,30 65 36 214 033 7,70 117 75 214 077 3,40 70 39 214 034 7,75 117 75 214 0775 3,50 70 39 214 035 7,80 117 75 214 078 3,60 70 39 214 036 7,90 117 75 214 079 3,70 70 39 214 037 8,00 117 75 214 080 3,75 70 39 214 0375 8,10 117 75 214 081 3,80 75 43 214 038 8,20 117 75 214 082 3,90 75 43 214 039 8,25 117 75 214 0825 4,00 75 43 214 040 8,30 117 75 214 083 4,10 75 43 214 041 8,40 117 75 214 084 4,20 75 43 214 042 8,50 117 75 214 085 4,25 75 43 214 0425 8,60 125 81 214 086 4,30 80 47 214 043 8,70 125 81 214 087 4,40 80 47 214 044 8,75 125 81 214 0875 4,50 80 47 214 045 8,80 125 81 214 088 4,60 80 47 214 046 8,90 125 81 214 089 4,70 80 47 214 047 9,00 125 81 214 090 - 18 -Twist drills Twist drills DIN 338 type N HSS ground, with split point 1.1 1.1 Point cut: helical point Highly efficient standard drill suitable for all Applications: for steel and cast-steel alloyed from 3,0 mm usual drilling work in all normal materials. High and unalloyed up to 900 N/mm strength, grey with split point DIN 1412 C rotational precision. cast, malleable cast iron, die-cast metal, iron Point angle: 118 sinter, nickel-silver, graphite cast iron, short- Helix angle: 20-30 chipping aluminium alloys, bronze and brass.. tolerance: h8 Surface: bright Right-hand cutting Packing unit: 0,30 mm up to 10,40 mm in plastic box of 10 10,50 mm up to 16,00 mm in plastic box of 5 Total length Flute length Article no. Price Total length Flute length Article no. Price mm mm mm mm mm mm each each 9,10 125 81 214 091 11,30 142 94 214 113 9,20 125 81 214 092 11,40 142 94 214 114 9,25 125 81 214 0925 11,50 142 94 214 115 9,30 125 81 214 093 11,60 142 94 214 116 9,40 125 81 214 094 11,70 142 94 214 117 9,50 125 81 214 095 11,80 142 94 214 118 9,60 133 87 214 096 11,90 151 101 214 119 9,70 133 87 214 097 12,00 151 101 214 120 9,75 133 87 214 0975 12,10 151 101 214 121 9,80 133 87 214 098 12,20 151 101 214 122 9,90 133 87 214 099 12,30 151 101 214 123 10,00 133 87 214 100 12,40 151 101 214 124 10,10 133 87 214 101 12,50 151 101 214 125 10,20 133 87 214 102 12,60 151 101 214 126 10,30 133 87 214 103 12,70 151 101 214 127 10,40 133 87 214 104 12,80 151 101 214 128 10,50 133 87 214 105 12,90 151 101 214 129 10,60 142 94 214 106 13,00 151 101 214 130 10,70 142 94 214 107 13,50 160 108 214 135 10,80 142 94 214 108 14,00 160 108 214 140 10,90 142 94 214 109 14,50 169 114 214 145 11,00 142 94 214 110 15,00 169 114 214 150 11,10 142 94 214 111 15,50 178 120 214 155 11,20 142 94 214 112 16,00 178 120 214 160 - 19 -
