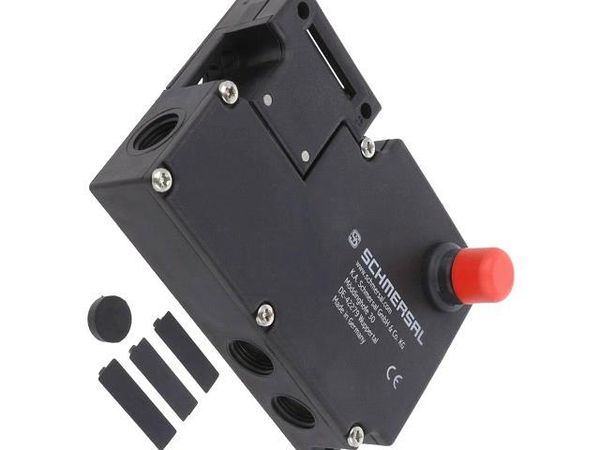

AZM 161SK-12/12RKTD-024 Schmersal

Name: AZM 161SK-12/12RKTD-024
Brand: Schmersal
SKU: AZM161SK1212RKTD024_Schmersal
Availability: InStock
Rating: 5 (11 reviews)

AZM 161SK-12/12RKTD-024 electronic component of Schmersal

AZM 161SK-12/12RKTD-024 Emergency Stop Switches / E-Stop Switches

AZM 161SK-12/12RKTD-024 Electromechanical

Images are for reference only, See Product Specifications

X-On Electronics has gained recognition as a prominent supplier of AZM 161SK-12/12RKTD-024 Emergency Stop Switches / E-Stop Switches across the USA, India, Europe, Australia, and various other global locations. AZM 161SK-12/12RKTD-024 Emergency Stop Switches / E-Stop Switches are a product manufactured by Schmersal. We provide cost-effective solutions for Emergency Stop Switches / E-Stop Switches, ensuring timely deliveries around the world.

Part No.	AZM 161SK-12/12RKTD-024
Manufacturer:	Schmersal
Category:	Emergency Stop Switches / E-Stop Switches
Description:	Safety switch: bolting; AZM 161; NC x4 + NO x2; Features: no key
Datasheet:	AZM 161SK-12/12RKTD-024 Datasheet (PDF)

Price (USD)

1: USD 390.9465 ea
Line Total: USD 390.95

Availability : 1

Ship by Wed. 19 Nov to Fri. 21 Nov

Qty Unit Price
1 $ 390.9465

AZM 161SK-12/12RKTD-024 More Buying Options & Price Grid(s)

Please wait...

Availability

Price (USD)

Buy Price

Quantity

Availability 1

Ship by Wed. 19 Nov to Fri. 21 Nov

MOQ : 1
Multiples : 1

Qty Unit Price
1 $ 390.9465

Specifications

Manufacturer

Schmersal Schmersal

Product Category

Emergency Stop Switches / E-Stop Switches Emergency Stop Switches / E-Stop Switches

IP Rating

IP67 IP67

Category

Emergency Stop Switches / E-Stop Switches Emergency Stop Switches / E-Stop Switches

Body Material

plastic plastic

Supply Voltage

24 VDC , 24 VAC 24 VDC , 24 VAC

Colour

black black

Leads

screw terminals screw terminals

Mechanical Durability

1000000 cycles 1000000 cycles

Safety Switches Features

no key no key

Type Of Safety Switch

bolting bolting

Force

2000N 2000N

Contacts Configuration

NC x4 + NO x2 NC x4 + NO x2

Number Of Key Entry Slots

1 1

Body Dimensions

130x90x30mm 130x90x30mm

Electrical Connection

M16 x4 M16 x4

Manufacturer Series

AZM 161 AZM 161

Related Items

101144420, 101145117 101144420, 101145117

Operating Temperature

- 25 To 60 C - 25 To 60 C

Contacts Electrical Parameters

250V AC / 4A, 24V DC / 2.5A 250V AC / 4A, 24V DC / 2.5A
