US15KB80R-7000 Shindengen

Name: US15KB80R-7000
Brand: Shindengen
SKU: US15KB80R7000_Shindengen
Availability: InStock
Rating: 5 (11 reviews)

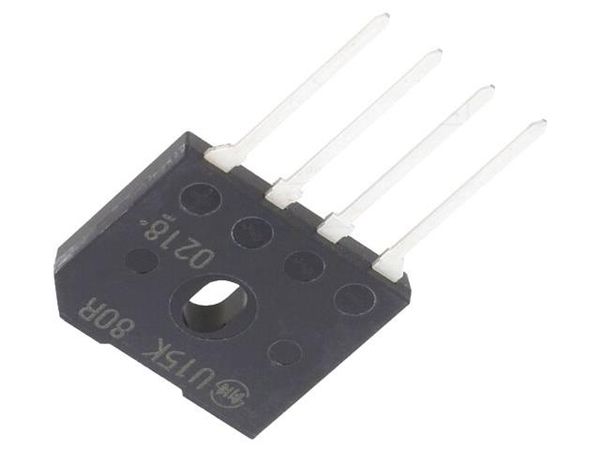

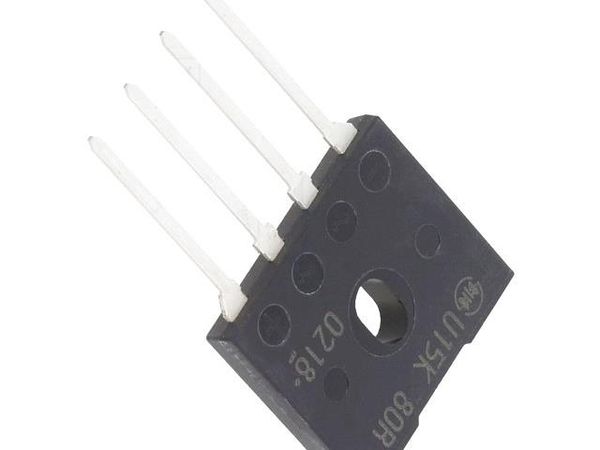

US15KB80R-7000 electronic component of Shindengen

Images are for reference only
See Product Specifications

Part No.	US15KB80R-7000
Manufacturer:	Shindengen
Category:	Bridge Rectifiers
Description:	Bridge Rectifiers 15 Amp 800 Volt
Datasheet:
	Large This product is classified as Large/Heavy, additional shipping charges may apply. A customer service representative may contact you after ordering to confirm exact shipping charges

Price (USD)

1: USD 0.896 ea
Line Total: USD 0.9

Availability - 345
Ship by Wed. 28 May to Fri. 30 May

MOQ: 1 Multiples: 1
Pack Size: 1

US15KB80R-7000 More Buying Options & Price Grid(s)

Please wait...

Availability Price Buy Price Quantity

345

Ship by Wed. 28 May to Fri. 30 May

MOQ : 1
Multiples : 1

1 : USD 0.896
5 : USD 0.658
25 : USD 0.5922
33 : USD 0.5642
91 : USD 0.5348

Specifications

Manufacturer

Shindengen Shindengen

Product Category

Bridge Rectifiers Bridge Rectifiers

RoHS - XON

y y

Type

single phase bridge single phase bridge

Mounting Style

through hole through hole

Package / Case

D6K D6K

Termination Style

through hole through hole

Peak Reverse Voltage

800 V 800 V

Vf - Forward Voltage

1.1 V 1.1 V

Max Surge Current

330 A 330 A

Minimum Operating Temperature

- 55 C - 55 C

Maximum Operating Temperature

+ 150 C + 150 C

Length

22.1 mm 22.1 mm

Width

3.45 mm 3.45 mm

Height

18.5 mm 18.5 mm

Packaging

Bulk Bulk

Ir - Reverse Current

10 uA 10 uA

Product

single phase bridge single phase bridge

Brand

Shindengen Shindengen

Maximum Reverse Leakage Current

10 uA 10 uA

Factory Pack Quantity :

50 50

Cnhts

8541100000 8541100000

Hts Code

8541100080 8541100080

Mxhts

85411001 85411001

Product Type

bridge rectifiers bridge rectifiers

Subcategory

Diodes & Rectifiers Diodes & Rectifiers

Taric

8541100000 8541100000
