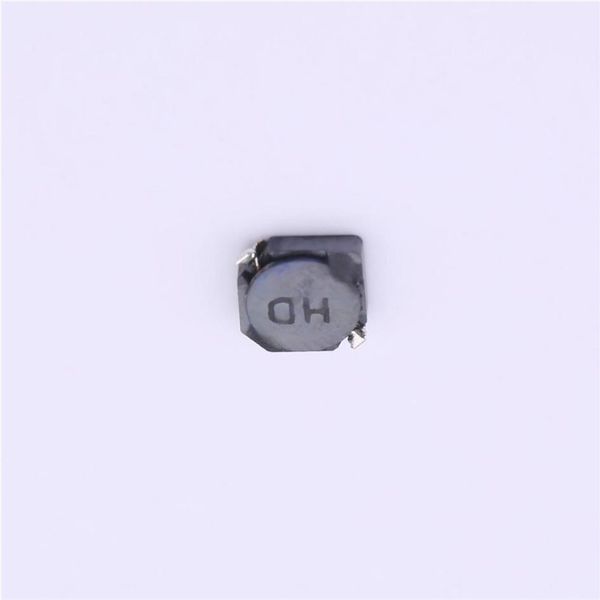

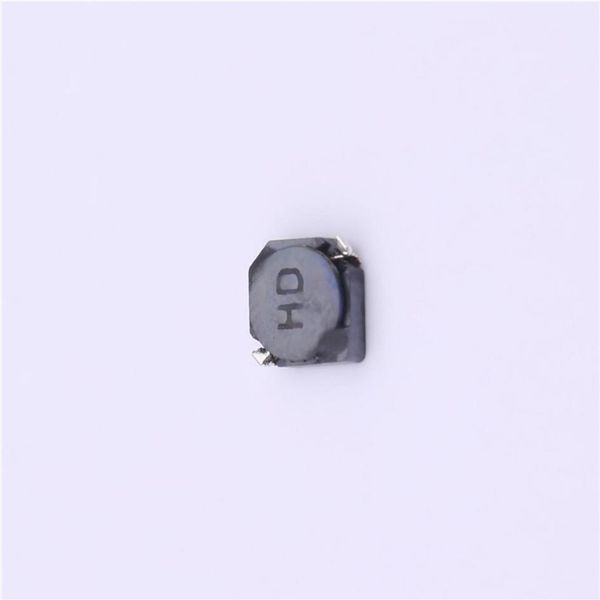

CDRH3D11HPNP-100NC Sumida

SSMMDD PPoowweerr IInndduuccttoorr SSMMDD PPoowweerr IInndduuccttoorr CDRH3D11/HP Description Ferrite drum core construction. RoHS Magnetically shielded. LWH:4.04.01.2 mm Max. Product weight: 55mg(Ref.) Halogen Moisture Sensitivity Level: 1 RoHS compliance. Free Halogen Free available. Environmental Data Dimension - mm Operating temperature range: -40~+105 (including coils self temperature rise) Storage temperature range: -40+105 Solder reflow temperature: 260 peak. Packaging Carrier tape and reel packaging 7.0diameter reel 1000pcs per reel Applications Ideally used in Mobile phone, PDA, MP3, DSC/DVC, Portable DVD, etc as DC-DC converter inductors. Land pattern and Schematics - mm Page 1 of 4 Revised: 7-Jan-14SSMMDD PPoowweerr IInndduuccttoorr SSMMDD PPoowweerr IInndduuccttoorr CDRH3D11/HP Electrical Characteristics Saturation Current Inductance D.C.R. (m) Temperature A 2 Part Name Stamp (H) Max. (Typ.) Rise Current within 1 (at 20) (A) 3 at 20 at 105 CDRH3D11HPNP-0R6NC A 0.625 59(45) 2.90 2.10 1.80 CDRH3D11HPNP-1R2NC B 1.225 82(63) 2.00 1.50 1.70 CDRH3D11HPNP-1R5NC C 1.525 104(80) 1.85 1.40 1.45 CDRH3D11HPNP-2R2NC D 2.225 143(110) 1.60 1.20 1.15 CDRH3D11HPNP-3R3NC E 3.325 182(140) 1.25 0.90 0.95 CDRH3D11HPNP-4R7NC F 4.725 234(180) 1.00 0.70 0.90 CDRH3D11HPNP-6R8NC G 6.825 377(290) 0.85 0.63 0.70 CDRH3D11HPNP-100NC H 10.025 413(330) 0.80 0.60 0.60 CDRH3D11HPNP-120NC I 12.025 585(470) 0.64 0.45 0.48 CDRH3D11HPNP-150NC J 15.025 653(520) 0.58 0.42 0.45 CDRH3D11HPNP-180NC K 18.025 888(710) 0.52 0.40 0.40 CDRH3D11HPNP-220NC L 22.025 1012(810) 0.45 0.35 0.33 1. Inductance measuring condition: at 100kHz. 2. Saturation current: The value of D.C. current when the inductance decreases to 65% of its nominal value. 3. Temperature rise current: The value of D.C. current when the temperature rise is t40(Ta20). Page 2 of 4 Revised: 7-Jan-14
