X-On Electronics has gained recognition as a prominent supplier of BD649 across the USA, India, Europe, Australia, and various other global locations. BD649 are a product manufactured by TT ELECTRONICS. We provide cost-effective solutions for BD649, ensuring timely deliveries around the world.

BD649 TT ELECTRONICS

Name: BD649
Brand: TT ELECTRONICS
SKU: BD649_TT_ELECTRONICS
Availability: OutOfStock
Rating: 5 (11 reviews)

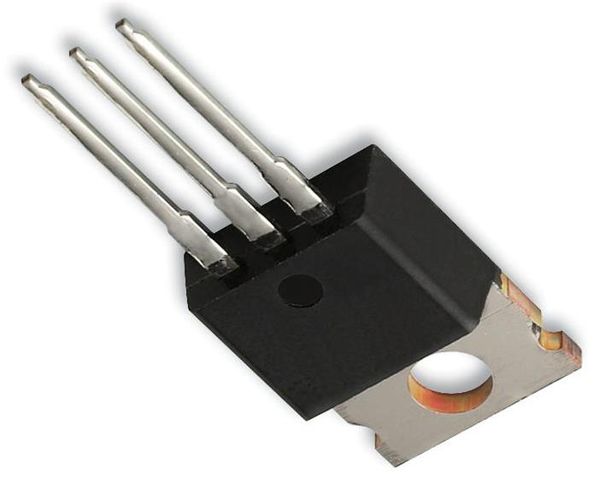

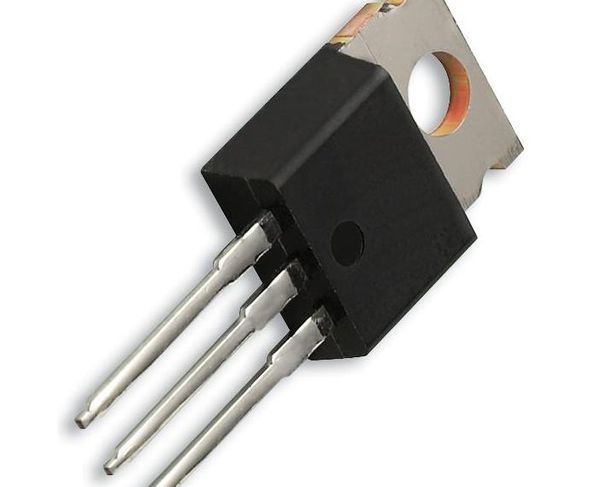

BD649 electronic component of TT ELECTRONICS

Images are for reference only
See Product Specifications

Part No.	BD649
Manufacturer:	TT ELECTRONICS
Category:	Unclassified
Description:	DARLINGTON TRANSISTOR, TO-220
Datasheet:	BD649 Datasheet (PDF)
	Large This product is classified as Large/Heavy, additional shipping charges may apply. A customer service representative may contact you after ordering to confirm exact shipping charges

Price (USD)

1: USD 8.0908 ea
Line Total: USD 8.09

Availability - 0

MOQ: 1 Multiples: 1
Pack Size: 1

BD649 More Buying Options & Price Grid(s)

Availability	Price	Buy Price	Quantity
0 Ship by Mon. 19 May to Fri. 23 May MOQ : 1 Multiples : 1	1 : USD 8.0908 10 : USD 5.3403 100 : USD 4.3411 500 : USD 4.3411

Specifications

Manufacturer TT ELECTRONICS TT ELECTRONICS
Product Category Unclassified Unclassified
Brand TT ELECTRONICS TT ELECTRONICS
Transistor Polarity NPN NPN
Collector Emitter Voltage Vbrceo 100 V 100 V
Transition Frequency Ft 10Mhz 10Mhz
Power Dissipation Pd 62.5 W 62.5 W
Dc Collector Current 8 A 8 A
Dc Current Gain Hfe 1500hFE 1500hFE
Transistor Case Style TO - 220 TO - 220
No. Of Pins 3Pins 3Pins
Operating Temperature Max 150 C 150 C
Svhc No SVHC (15 - Jan - 2019) No SVHC (15 - Jan - 2019)
Av Current Ic 8 A 8 A
Collector Emitter Saturation Voltage Vceon 2 V 2 V
Continuous Collector Current Ic Max 8 A 8 A
Current Ic Continuous A Max 8 A 8 A
Current Ic Hfe 3 A 3 A
Device Marking BD649 BD649
Full Power Rating Temperature 25C 25C
Hfe Min 750 750
No. Of Transistors 1 1
Operating Temperature Min - 55 C - 55 C
Operating Temperature Range - 55 C To + 150 C - 55 C To + 150 C
Power Dissipation Ptot Max 62.5 W 62.5 W
Termination Type Through Hole Through Hole
Transistor Type Darlington Darlington
Voltage Vcbo 120 V 120 V

We are delighted to provide the BD649 from our TT ELECTRONICS manufacturer, at competitive rates not only in the United States, Australia, and India, but also across Europe and beyond. A long established and extensive electronic component distribution network has enhanced our global reach and dependability, ensuring cost savings through prompt deliveries worldwide. Client satisfaction is at the heart of our business, where every component counts and every customer matters. Our technical service team is ready to assist you. From product selection to after-sales support, we strive to deliver a seamless and satisfying experience. Are you ready to experience the best in electronic component distribution? Contact X-ON Electronics today and discover why X-On are a preferred choice for the BD649 and other electronic components in the TT ELECTRONICS manufacturer and beyond.
