UTG1022X-PA Uni-T

Name: UTG1022X-PA
Brand: Uni-T
SKU: UTG1022XPA_Uni-T
Availability: InStock
Rating: 5 (11 reviews)

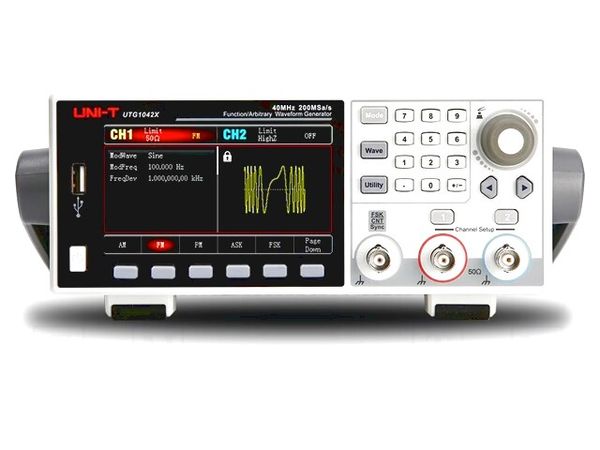

UTG1022X-PA electronic component of Uni-T

UTG1022X-PA Function Generators & Synthesisers

Images are for reference only, See Product Specifications

X-On Electronics has gained recognition as a prominent supplier of UTG1022X-PA Function Generators & Synthesisers across the USA, India, Europe, Australia, and various other global locations. UTG1022X-PA Function Generators & Synthesisers are a product manufactured by Uni-T. We provide cost-effective solutions for Function Generators & Synthesisers, ensuring timely deliveries around the world.

Part No.	UTG1022X-PA
Manufacturer:	Uni-T
Category:	Function Generators & Synthesisers
Description:	Generator: arbitrary, function; 20MHz; LCD TFT 4,3; 480x272
Datasheet:	UTG1022X-PA Datasheet (PDF)

Price (USD)

1: USD 442.9551 ea
Line Total: USD 442.96

Availability : 1

Ship by Wed. 26 Nov to Fri. 28 Nov

Qty Unit Price
1 $ 442.9551

UTG1022X-PA More Buying Options & Price Grid(s)

Please wait...

Availability

Price (USD)

Buy Price

Quantity

Availability 1

Ship by Wed. 26 Nov to Fri. 28 Nov

MOQ : 1
Multiples : 1

Qty Unit Price
1 $ 442.9551

Specifications

Manufacturer

Uni-T Uni-T

Product Category

Function Generators & Synthesisers Function Generators & Synthesisers

Kind Of Display Used

LCD TFT 4,3 LCD TFT 4,3

Supply Voltage

100 To 240 VAC 100 To 240 VAC

Type Of Generator

arbitrary, function arbitrary, function

Interface

USB USB

Number Of Channels

2 2

Display Resolution

480x272 480x272

Dimensions

215x103x316mm 215x103x316mm

Standard Equipment

USB cable, mains cable, BNC - BNC cable, BNC cable - crocodile clip USB cable, mains cable, BNC - BNC cable, BNC cable - crocodile clip

Measuring Instrument Features

4 Watt power output, <100kHz, 200 runs memory 4 Watt power output, <100kHz, 200 runs memory

Sampling

200Msps 200Msps

Waveform Frequency Range

1µ Hz To 20 MHz (sinus W A V eform) , 1µ Hz To 10 MHz (rect A ngul A r W A V eform) , 1µ Hz To 10 MHz (pulse W A V eform) , 1µ Hz To 400 KHz (r A mp W A V eform) , 1µ Hz To 5 MHz (A rbitr A ry W A V eform) 1µ Hz To 20 MHz (sinus W A V eform) , 1µ Hz To 10 MHz (rect A ngul A r W A V eform) , 1µ Hz To 10 MHz (pulse W A V eform) , 1µ Hz To 400 KHz (r A mp W A V eform) , 1µ Hz To 5 MHz (A rbitr A ry W A V eform)

Output Parameters

impedance: 50Ω impedance: 50Ω

Vertical Resolution

16bit 16bit

Kind Of Modulation

AM, FM, ASK, FSK, PM, PSK, PWM AM, FM, ASK, FSK, PM, PSK, PWM

Waveforms

sinus, arbitrary, impulse, ramp, noise, DC, square sinus, arbitrary, impulse, ramp, noise, DC, square

Maximum Waveform Frequency

20 MHz 20 MHz
