X-On Electronics has gained recognition as a prominent supplier of 268-275-000 unclassified across the USA, India, Europe, Australia, and various other global locations. 268-275-000 unclassified are a product manufactured by Van Damme. We provide cost-effective solutions for unclassified, ensuring timely deliveries around the world.

268-275-000 Van Damme

Name: 268-275-000
Brand: Van Damme
SKU: 268275000_Van Damme
Availability: OutOfStock
Rating: 5 (11 reviews)

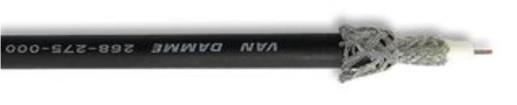

268-275-000 electronic component of Van Damme

Images are for reference only
See Product Specifications

Part No.	268-275-000
Manufacturer:	Van Damme
Category:	Unclassified
Description:	COAXIAL CABLE, RG59/U, BLACK, PER M
Datasheet:	268-275-000 Datasheet (PDF)
	Large This product is classified as Large/Heavy, additional shipping charges may apply. A customer service representative may contact you after ordering to confirm exact shipping charges

Price (USD)

1: USD 4.485 ea
Line Total: USD 4.49

Availability - 0

MOQ: 1 Multiples: 1
Pack Size: 1

268-275-000 More Buying Options & Price Grid(s)

Availability	Price	Buy Price	Quantity
0 - WHS 1 Ships to you between Wed. 12 Jun to Tue. 18 Jun MOQ : 1 Multiples : 1	1 : USD 4.485

Specifications

Manufacturer Van Damme Van Damme
Product Category Unclassified Unclassified
Coaxial Cable Type Rg59 Rg59
Wire Gauge Xdash Xdash
Conductor Area Csa Xdash Xdash
Impedance 75Ohm 75Ohm
Reel Length Imperial Xdash Xdash
Reel Length Metric Xdash Xdash
Conductor Material Copper Copper
No Of Max Strands X Strand Size 19_X_0.16Mm 19_X_0.16Mm
Jacket Material Pvc Pvc
Jacket Colour Black Black
External Diameter 6.15Mm 6.15Mm
Svhc No_Svhc_(15Xdashjunxdash2015) No_Svhc_(15Xdashjunxdash2015)

More Products By Manufacturer "Van Damme"

Image	Part-Description
Hot	268306C CABLE, COAX, VIDEO, BLACK, 100M Stock : 0 Large This product is classified as Large/Heavy, additional shipping charges may apply. A customer service representative may contact you after ordering to confirm exact shipping charges.
Hot	268307C CABLE, COAX, VIDEO, RED, PER M Stock : 0 Large This product is classified as Large/Heavy, additional shipping charges may apply. A customer service representative may contact you after ordering to confirm exact shipping charges.
Hot	268308C CABLE, COAX, VIDEO, GREEN, 100M Stock : 0 Large This product is classified as Large/Heavy, additional shipping charges may apply. A customer service representative may contact you after ordering to confirm exact shipping charges.
Hot	268401C CABLE, DIGITAL AUDIO, 100M Stock : 0 Large This product is classified as Large/Heavy, additional shipping charges may apply. A customer service representative may contact you after ordering to confirm exact shipping charges.
Hot	268-450-000 CABLE, CAT 5E, STP, 100M Stock : 0 Large This product is classified as Large/Heavy, additional shipping charges may apply. A customer service representative may contact you after ordering to confirm exact shipping charges.
Hot	268502L CABLE, SPEAKER, 2CORE, 2.5MM², 50M Stock : 0 Large This product is classified as Large/Heavy, additional shipping charges may apply. A customer service representative may contact you after ordering to confirm exact shipping charges.
Hot	268304 CABLE, COAX, RGB SYNC, 4C, 75R, PER M Stock : 0 Large This product is classified as Large/Heavy, additional shipping charges may apply. A customer service representative may contact you after ordering to confirm exact shipping charges.
Hot	268-431-050 CABLE, AES, 1 PAIR, 100M Stock : 0 Large This product is classified as Large/Heavy, additional shipping charges may apply. A customer service representative may contact you after ordering to confirm exact shipping charges.
Hot	268515C CABLE, SPEAKER, 2C, 1.5MM, 100M Stock : 0 Large This product is classified as Large/Heavy, additional shipping charges may apply. A customer service representative may contact you after ordering to confirm exact shipping charges.
Hot	268525C CABLE, SPEAKER, 2C, 2.5MM, 100M Stock : 0 Large This product is classified as Large/Heavy, additional shipping charges may apply. A customer service representative may contact you after ordering to confirm exact shipping charges.

More Products By Category "Unclassified"

Image	Part-Description
Hot	4411/07 HEXAGON KEY, 7MM Stock : 0 Large This product is classified as Large/Heavy, additional shipping charges may apply. A customer service representative may contact you after ordering to confirm exact shipping charges.
Hot	0021953 MULTICORE, 7, 2.5MM2, 50M, 500V Stock : 0 Large This product is classified as Large/Heavy, additional shipping charges may apply. A customer service representative may contact you after ordering to confirm exact shipping charges.
Hot	268306C CABLE, COAX, VIDEO, BLACK, 100M Stock : 0 Large This product is classified as Large/Heavy, additional shipping charges may apply. A customer service representative may contact you after ordering to confirm exact shipping charges.
Hot	268307C CABLE, COAX, VIDEO, RED, PER M Stock : 0 Large This product is classified as Large/Heavy, additional shipping charges may apply. A customer service representative may contact you after ordering to confirm exact shipping charges.
Hot	A422-064103-02 DC TUBULAR SOLENOID TP12X13-C-24D Stock : 0 Large This product is classified as Large/Heavy, additional shipping charges may apply. A customer service representative may contact you after ordering to confirm exact shipping charges.
Hot	268308C CABLE, COAX, VIDEO, GREEN, 100M Stock : 0 Large This product is classified as Large/Heavy, additional shipping charges may apply. A customer service representative may contact you after ordering to confirm exact shipping charges.
Hot	44106 NTC THERMISTOR Stock : 0 Large This product is classified as Large/Heavy, additional shipping charges may apply. A customer service representative may contact you after ordering to confirm exact shipping charges.
Hot	A420-065945-00 DC FRAMED SOLENOID 4-I-24D Stock : 89 Large This product is classified as Large/Heavy, additional shipping charges may apply. A customer service representative may contact you after ordering to confirm exact shipping charges.
Hot	A420-065756-00 AC Frame Solenoid Stock : 10 Large This product is classified as Large/Heavy, additional shipping charges may apply. A customer service representative may contact you after ordering to confirm exact shipping charges.

We are delighted to provide the 268-275-000 from our Unclassified category, at competitive rates not only in the United States, Australia, and India, but also across Europe and beyond. A long established and extensive electronic component distribution network has enhanced our global reach and dependability, ensuring cost savings through prompt deliveries worldwide. Client satisfaction is at the heart of our business, where every component counts and every customer matters. Our technical service team is ready to assist you. From product selection to after-sales support, we strive to deliver a seamless and satisfying experience. Are you ready to experience the best in electronic component distribution? Contact X-ON Electronics today and discover why X-On are a preferred choice for the 268-275-000 and other electronic components in the Unclassified category and beyond.

Additional Infomation About Product

VAN DAMME PRODUCT DATA SHEET VAN DAMME 268-275-000 HD VISION FLEXIBLE RG59/U COAX This HD-SDI single coaxial is based on industry standard RG59/U parameters and its precision construction ensures that electrical performance has not been majorly affected by the use of a stranded centre conductor. Applications & Application Notes Transmission of HD-SDI, SDI and analogue video signals Stranded centre conductor for flexible use Ideal for use as patchcords, shorter HD-SDI cables and cable reel systems Designed for touring, outside broadcast and other dynamic uses Use of precision 75 Ohm components throughout any signal chain is imperative Recommended Transmission Lengths SMPTE 259 SMPTE 292 SMPTE 424 Data rate (clock) 143Mb/s 177Mb/s 270Mb/s 360Mb/s 1.485Gb/s 2.97Gb/s Clock Rate 72MHz 89MHz 135MHz 180MHz 743MHz 1485MHz Stock code Recommended maximum transmission lengths 268-275-000 249m 224m 145m 128m 47m 31m Mechanical Specifications Conductor Material Bare ultra pure oxygen free copper Stranding 19 x 0.16mm Dielectric Material Gas injected Foam skin polyethylene Average thickness 1.35mm Diameter 3.70mm 0.15 Screen 1 Type Tinned bare ultra pure oxygen free copper Screen 2 Material Tinned bare ultra pure oxygen free copper Coverage 95% Overall Jacket Material Flexible PVC composite Jet Black RAL 9005 Average thickness 0.75mm Overall diameter 6.15mm 0.20 www.van-damme.com VAN DAMME PRODUCT DATA SHEET Electrical specifications Resistance Conductor <40 Ohm/km Shield <8 Ohm/km Insulation >5000 MOhm/km Voltage test 1000V DC 1 minute OK Capacitance 56pF/m Velocity of propagation 80% Impedance at 10MHz 75 Ohms 1.5 Attenuation 5 MHz 1.96 dB/100m 10 MHz 2.95 dB/100m 100 MHz 9.8 dB/100m 135 MHz 11.48 dB/100m 180 MHz 13.45 dB/100m 200 MHz 14.18 dB/100m 270 MHz 16.73 dB/100m 400 MHz 19.25 dB/100m 743 MHz 29.20 dB/100m 1485 MHz 43.64 dB/100m www.van-damme.com
