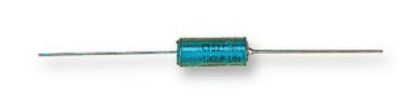

CTS13225X0040B2BE3

CTS1, CTS13, 749DX www.vishay.com Vishay Sprague Solid-Electrolyte TANTALEX Capacitors, Hermetically Sealed, Axial-Lead, CECC Approved FEATURES Terminations: tin / lead (SnPb), 100 % tin (RoHS-compliant) Available Hermetically sealed metal case with plastic film Available insulation Extended capacitance range (type 749DX) High operational stability with both time and temperature Low leakage current Low dissipation factor Material categorization: for definitions of compliance please see www.vishay.com/doc 99912 PERFORMANCE CHARACTERISTICS Note Operating Temperature: * This datasheet provides information about parts that are -55 C to +85 C (types CTS13) RoHS-compliant and / or parts that are non RoHS-compliant. For -55 C to +125 C (types CTS1, 749DX) example, parts with lead (Pb) terminations are not RoHS-compliant. Please see the information / tables in this datasheet for details SPECIFICATIONS CECC BS APPLICATIONS 30201-001 749DX 9073-N001749DX Performance and reliability has been proven in a wide range 30201-002 CTS1 of applications such as: filtering, by-pass, coupling, energy 30201-005 CTS13 storage, timing circuits. 30201-029 749DX ORDERING INFORMATION CTS13 105 X0 040 A 2 P E3 TYPE CAPACITANCE CAPACITANCE DC VOLTAGE RATING CASE STYLE PACKAGING RoHS- TOLERANCE AT +85 C CODE NUMBER COMPLIANT Identifies the basic Expressed in X0 = 20 % Expressed in volts. See 0 = bare See Tape E3 = 100 % tin capacitor design picofarads. X9 = 10 % Where necessary, Ratings case and Reel termination CTS1 = First two digits X5 = 5 % * zeros precede the and 2 = Packaging (RoHS-compliant) CECC 30201-002 are significant. * Special order voltage rating to Case plastic-film Blank = SnPb CTS13 = Third digit is the complete the Codes insulation termination CECC 30201-005 number of 3 digit block table. 749DX = zeros following. 6R3 = 6.3 V CECC 30201-001 / CECC 30201-029 DIMENSIONS in inches millimeters 1.500 0.250 1.500 0.250 D 38.10 6.35 38.10 6.35 dia. L Positive lead 1 + - 0.047 1.19 max. Solid tinned 0.125 3.18 max. J nickel leads max. LEAD DIAMETER CASE CODE L 0.031 0.79 J max. D max. 1 + 10 %, - 0.05 A 0.286 7.26 0.402 10.2 0.141 3.6 0.020 0.5 B 0.474 12.04 0.590 15.0 0.192 4.9 0.020 0.5 C 0.686 17.42 0.807 20.5 0.295 7.5 0.025 0.6 D 0.786 19.96 0.945 24.0 0.364 9.1 0.025 0.6 Revision: 05-Aug-2020 Document Number: 42073 1 For technical questions, contact: tantalum vishay.com THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT www.vishay.com/doc 91000CTS1, CTS13, 749DX www.vishay.com Vishay Sprague RATINGS AND CASE CODES - TYPE CTS1 RATED VOLTAGE U (+85 C) R 6.3 V 10 V 16 V 25 V 40 V 50 V 63 V C R (F) CATEGORY VOLTAGE U (+125 C) C 4 V 6.3 V 10 V 13 V 25 V 33 V 40 V 0.10 A 0.12 A 0.15 A 0.18 A 0.22 A 0.27 AA 0.33 AA 0.39 AA 0.47 AAA 0.56 AAA 0.68 AAA 0.82 AA B 1.0 AA B 1.2 AB B 1.5 ABBB 1.8 A BBB 2.2 A BBB 2.7 A BBB 3.3 A BBB 3.9 A BBB 4.7 A BBC 5.6 A B C C 6.8 A B C C 8.2 BCCC 10 BCCC 12 B CCD 15 B CCD 18 B CCD 22 B CD 27 B CD 33 B CD 39 B C D 47 B C D 56 B C D 68 CD 82 CD 100 CD 120 C D 150 C D 180 D 220 D 270 D 330 D Revision: 05-Aug-2020 Document Number: 42073 2 For technical questions, contact: tantalum vishay.com THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT www.vishay.com/doc 91000
