MAL218497901E3 Vishay

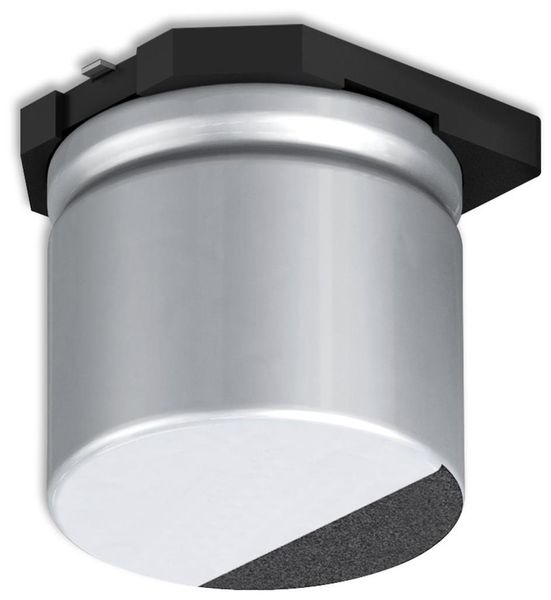

184 CPNS www.vishay.com Vishay BCcomponents Conductive Polymer Aluminum Capacitors SMD (Chip), Low Impedance FEATURES Useful life: up to 2000 h at 105 C Very low ESR and high ripple current High voltages up to 100 V SMD-version with base plate, lead (Pb)-free reflow solderable Material categorization: for definitions of compliance please see www.vishay.com/doc 99912 longer 184 CPNS 185 CPNZ lifetime APPLICATIONS higher temperature Industrial and professional applications Telecommunications and IT 186 CPNT Portable and mobile equipment Fig. 1 MARKING QUICK REFERENCE DATA Rated capacitance (in F) DESCRIPTION VALUE Rated voltage (in V) Nominal case sizes 4.0 x 4.0 x 5.5 (L x W x H in mm) to 10.0 x 10.0 x 12.4 Date code, in accordance with IEC 60062 Rated capacitance range, C 4.7 F to 3300 F R Black mark or - sign indicating the cathode (the anode is Tolerance on C 20 % R identified by beveled edges) Rated voltage range, U 2.5 V to 100 V R Code indicating group number (84) Category temperature range -55 C to +105 C Endurance test at 105 C 2000 h PACKAGING Useful life at 105 C 2000 h Shelf life at 0 V, 105 C 1000 h Supplied in blister tape on reel Based on sectional IEC 60384-25 / CECC 32300 specification Climatic category IEC 60068 55 / 105 / 56 Revision: 04-Feb-2021 Document Number: 28437 1 For technical questions, contact: aluminumcaps1 vishay.com THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT www.vishay.com/doc 91000 184 CPNS www.vishay.com Vishay BCcomponents SELECTION CHART FOR C , U (2.5 V TO 20 V), AND RELEVANT NOMINAL CASE SIZES R R (L x W x H in mm) U (V) R C R (F) 2.5 4.0 6.3 10 16 20 5.0 x 5.0 x 5.8 5.0 x 5.0 x 5.8 10 4.0 x 4.0 x 5.5 6.3 x 6.3 x 5.8 6.3 x 6.3 x 5.8 6.3 x 6.3 x 7.7 5.0 x 5.0 x 5.8 6.3 x 6.3 x 5.8 22 4.0 x 4.0 x 5.5 6.3 x 6.3 x 5.8 6.3 x 6.3 x 7.7 6.3 x 6.3 x 7.7 5.0 x 5.0 x 5.8 33 6.3 x 6.3 x 5.8 - 6.3 x 6.3 x 7.7 5.0 x 5.0 x 5.5 5.0 x 5.0 x 5.8 6.3 x 6.3 x 5.8 47 5.0 x 5.0 x 5.8 5.0 x 5.0 x 5.5 6.3 x 6.3 x 5.8 6.3 x 6.3 x 5.8 6.3 x 6.3 x 7.7 6.3 x 6.3 x 7.7 6.3 x 6.3 x 7.7 6.3 x 6.3 x 5.8 68 - 6.3 x 6.3 x 7.7 5.0 x 5.0 x 5.5 5.0 x 5.0 x 5.5 5.0 x 5.0 x 5.8 6.3 x 6.3 x 5.8 8.0 x 8.0 x 11.7 100 6.3 x 6.3 x 5.8 5.0 x 5.0 x 5.8 6.3 x 6.3 x 5.8 6.3 x 6.3 x 5.8 6.3 x 6.3 x 7.7 10.0 x 10.0 x 12.4 6.3 x 6.3 x 5.8 6.3 x 6.3 x 7.7 120 6.3 x 6.3 x 5.8 5.0 x 5.0 x 5.8 6.3 x 6.3 x 5.8 5.0 x 5.0 x 5.8 6.3 x 6.3 x 5.8 8.0 x 8.0 x 11.7 8.0 x 8.0 x 11.7 220 6.3 x 6.3 x 5.8 6.3 x 6.3 x 7.7 6.3 x 6.3 x 5.8 6.3 x 6.3 x 7.7 10.0 x 10.0 x 12.4 10.0 x 10.0 x 12.4 6.3 x 6.3 x 7.7 8.0 x 8.0 x 11.7 6.3 x 6.3 x 5.8 6.3 x 6.3 x 5.8 8.0 x 8.0 x 11.7 330 6.3 x 6.3 x 5.8 6.3 x 6.3 x 7.7 6.3 x 6.3 x 7.7 10.0 x 10.0 x 12.4 6.3 x 6.3 x 7.7 10.0 x 10.0 x 12.4 8.0 x 8.0 x 11.7 390 8.0 x 8.0 x 11.7 6.3 x 6.3 x 5.8 8.0 x 8.0 x 11.7 470 6.3 x 6.3 x 7.7 8.0 x 8.0 x 11.7 10.0 x 10.0 x 12.4 - 6.3 x 6.3 x 7.7 10.0 x 10.0 x 12.4 560 8.0 x 8.0 x 11.7 - 8.0 x 8.0 x 11.7 680 10.0 x 10.0 x 12.4 10.0 x 10.0 x 12.4 10.0 x 10.0 x 12.4 820 10.0 x 10.0 x 12.4 - - - 1000 8.0 x 8.0 x 11.7 8.0 x 8.0 x 11.7 10.0 x 10.0 x 12.4 10.0 x 10.0 x 12.4 - 8.0 x 8.0 x 11.7 1200 -- -- 10.0 x 10.0 x 12.4 8.0 x 8.0 x 11.7 1500 8.0 x 8.0 x 11.7 10.0 x 10.0 x 12.4 - - 10.0 x 10.0 x 12.4 2200 10.0 x 10.0 x 12.4 10.0 x 10.0 x 12.4 - - - 2700 10.0 x 10.0 x 12.4 - - - - 3300 10.0 x 10.0 x 12.4 - - - - - Revision: 04-Feb-2021 Document Number: 28437 2 For technical questions, contact: aluminumcaps1 vishay.com THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT www.vishay.com/doc 91000
