X-On Electronics has gained recognition as a prominent supplier of TS-1005B-AR04326 Tactile Switches across the USA, India, Europe, Australia, and various other global locations. TS-1005B-AR04326 Tactile Switches are a product manufactured by XUNPU. We provide cost-effective solutions for Tactile Switches, ensuring timely deliveries around the world.

TS-1005B-AR04326 XUNPU

Name: TS-1005B-AR04326
Brand: XUNPU
SKU: TS1005BAR04326_XUNPU
Availability: InStock
Rating: 5 (11 reviews)

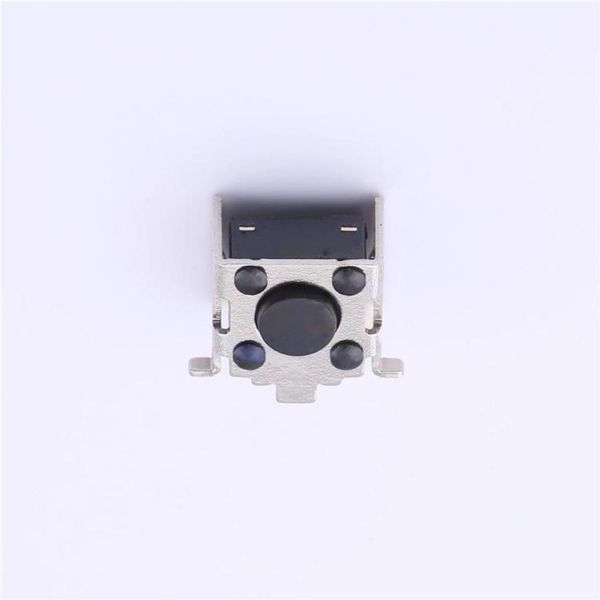

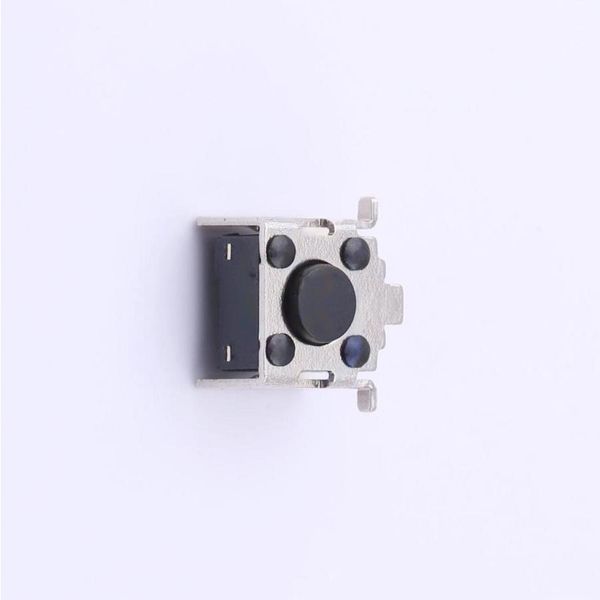

TS-1005B-AR04326 electronic component of XUNPU

Images are for reference only
See Product Specifications

Part No.	TS-1005B-AR04326
Manufacturer:	XUNPU
Category:	Tactile Switches
Description:	Yes 6mm SMDSplicing 4.3mm Black 50mA Round Button Surface Mount 6mm SPST 100MΩ 260gf@±50gf 12V SMD Tactile Switches ROHS
Datasheet:
	Large This product is classified as Large/Heavy, additional shipping charges may apply. A customer service representative may contact you after ordering to confirm exact shipping charges

Price (USD)

5: USD 0.1928 ea
Line Total: USD 0.96

Availability - 485
Ship by Tue. 24 Jun to Fri. 27 Jun

MOQ: 5 Multiples: 5
Pack Size: 5

TS-1005B-AR04326 More Buying Options & Price Grid(s)

Please wait...

Availability Price Buy Price Quantity

485

Ship by Tue. 24 Jun to Fri. 27 Jun

MOQ : 5
Multiples : 5

5 : USD 0.1928
50 : USD 0.154
150 : USD 0.1008
500 : USD 0.0718
2500 : USD 0.064
5000 : USD 0.0599

Specifications

Manufacturer

XUNPU XUNPU

Product Category

Tactile Switches Tactile Switches

Operating Force

260gf@ ± 50gf 260gf@ ± 50gf

Voltage Rating DC

12 V 12 V

Mounting Style

Surface Mount Surface Mount

Category

Tactile Switches Tactile Switches

Rohs

y y

Strike Gundam

Yes Yes

Switch Width

6 mm 6 mm

Pin Style

SMDSplicing SMDSplicing

Switch Height

4.3 mm 4.3 mm

Actuator/Cap Color

Black Black

Contact Current

50 mA 50 mA

Actuator Style

Round Button Round Button

Switch Length

6 mm 6 mm

Circuit

SPST SPST

Insulation Resistance

100 MOhms 100 MOhms

Notes:- Show Stocked Products With Similar Attributes.
