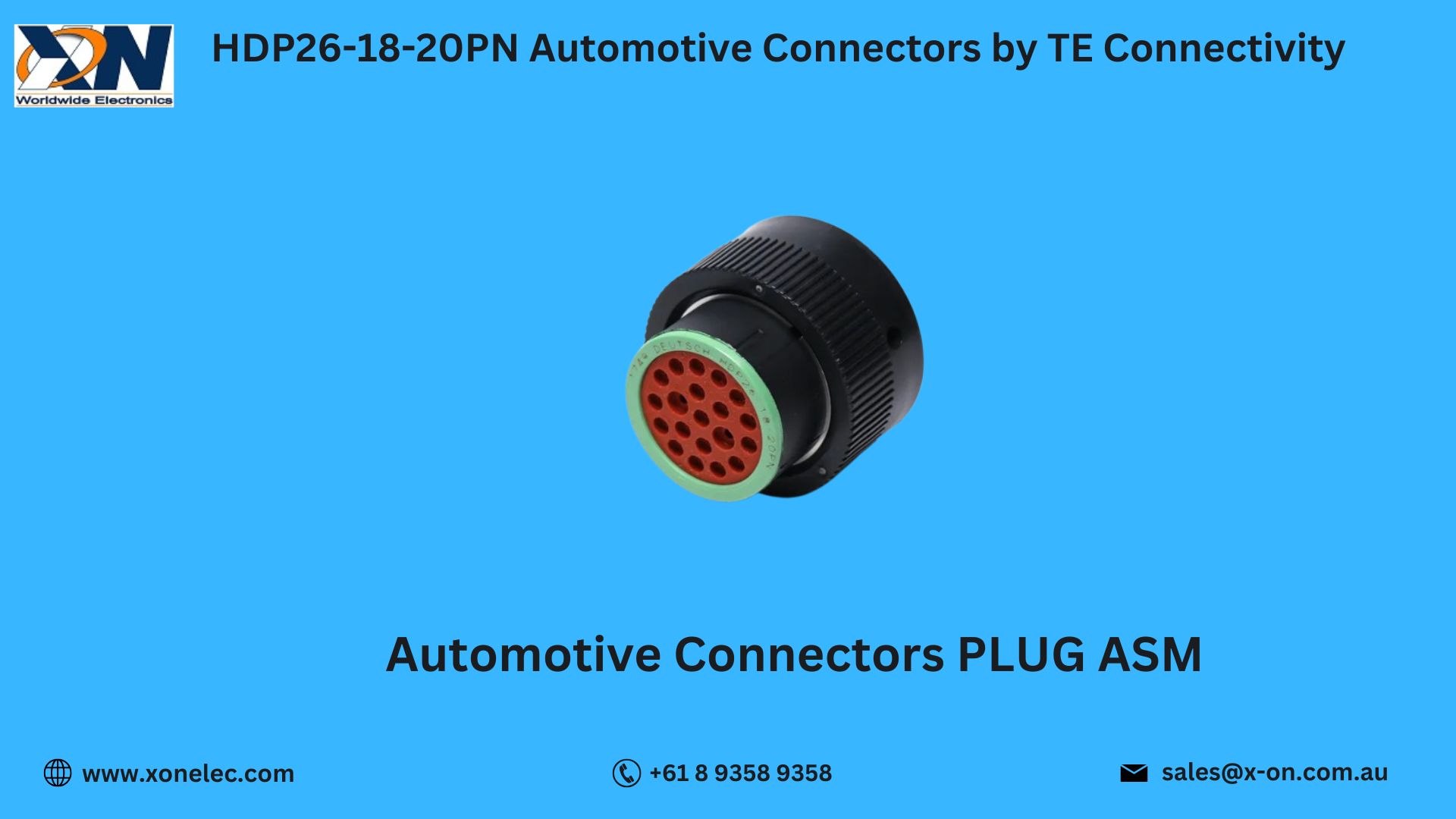

HDP26-18-20PN Automotive Connectors by TE – Rugged Performance in Harsh Environments
The Automotive Connectors HDP26-18-20PN by TE Connectivity are built for one thing—reliable performance in extreme automotive and industrial conditions. Designed to handle harsh environments like vibration, moisture, and temperature extremes, this circular connector is part of the trusted HDP series used across heavy-duty vehicles, trucks, buses, and off-road equipment.
In this blog, we highlight the features, applications, and technical strengths of Connectors, Automotive Connectors by TE Connectivity, particularly the HDP26-18-20PN model, to help you select the right solution for mission-critical automotive systems.
Technical Specifications – HDP26-18-20PN
-
Manufacturer: TE Connectivity
-
Series: HDP26
-
Type: Circular Automotive Connector Plug
-
Contacts: 20 positions
-
Contact Gender: Pin (Male)
-
Shell Size: 18
-
Mounting Type: Free-Hanging
-
Material: Thermoplastic housing with sealing grommet
-
Category: Connectors, Automotive Connectors by TE Connectivity
This connector ensures high electrical performance with sealed protection against water, oil, and dirt—perfect for high-demand applications in transportation and machinery.
Key Features of HDP26-18-20PN
-
Durable Thermoplastic Construction – Offers long-lasting performance
-
20 Contact Positions – Ideal for medium to high pin count interfaces
-
IP67 Rated Sealing – Resistant to moisture, dust, and contaminants
-
Easy Mating and Unmating – Threaded coupling and ergonomic design
-
Reliable Connection – For harsh-environment electrical systems
These features make Connectors, Automotive Connectors by TE Connectivity a reliable choice for OEMs and engineers working in demanding mobility sectors.
Typical Applications
HDP26-18-20PN Automotive Connectors by TE Connectivity are used in:
-
Heavy-duty trucks and trailers
-
Construction machinery
-
Agricultural equipment
-
Commercial and military vehicles
-
Industrial automation systems
From power distribution to signal transmission, Connectors, Automotive Connectors by TE Connectivity ensure integrity even under constant vibration and exposure to the elements.
Use Case: Wiring Harness Upgrade in Off-Highway Vehicle
Problem: A mining vehicle required a sealed, multi-pin connector for control unit connections in a highly dusty and wet environment.
Solution: Engineers specified HDP26-18-20PN Automotive Connectors by TE Connectivity for their rugged sealing and 20-pin layout.
Result: Improved system uptime, minimal wiring faults, and easier servicing thanks to the trusted performance of Connectors, Automotive Connectors by TE Connectivity.
Download Datasheet
Need full specs or panel cut-out diagrams?
Download HDP26-18-20PN Datasheet
Why Order from Xonelec?
Buy original Connectors, Automotive Connectors by TE Connectivity with confidence at Xonelec and enjoy:
- 100% Genuine TE Connectivity Parts
- Worldwide Delivery – USA, India, Australia, Europe & more
- Bulk Stock for OEMs and MROs
- Technical Support & Documentation
- Fast Checkout & Global Logistics
Order now at www.xonelec.com
Conclusion
The HDP26-18-20PN Automotive Connectors by TE Connectivity are engineered to meet the most rugged connection challenges in automotive and heavy equipment industries. With high contact density, moisture sealing, and durable construction, these connectors deliver maximum reliability in any environment. Choose Connectors, Automotive Connectors by TE Connectivity for uncompromised performance—available today at Xonelec.
FAQs – HDP26-18-20PN by TE Connectivity
Q1. How many contacts does this connector support?
It has 20 pin contacts in a circular housing.
Q2. Is this connector waterproof?
Yes, it meets IP67 standards when mated.
Q3. Can it be used in outdoor applications?
Absolutely. It’s designed for heavy-duty vehicles and outdoor environments.
Q4. What type of coupling mechanism is used?
It uses a threaded coupling for secure mating.
Q5. Do you ship to international locations?
Yes, Xonelec ships to the USA, India, Australia, Europe, and many other regions.
