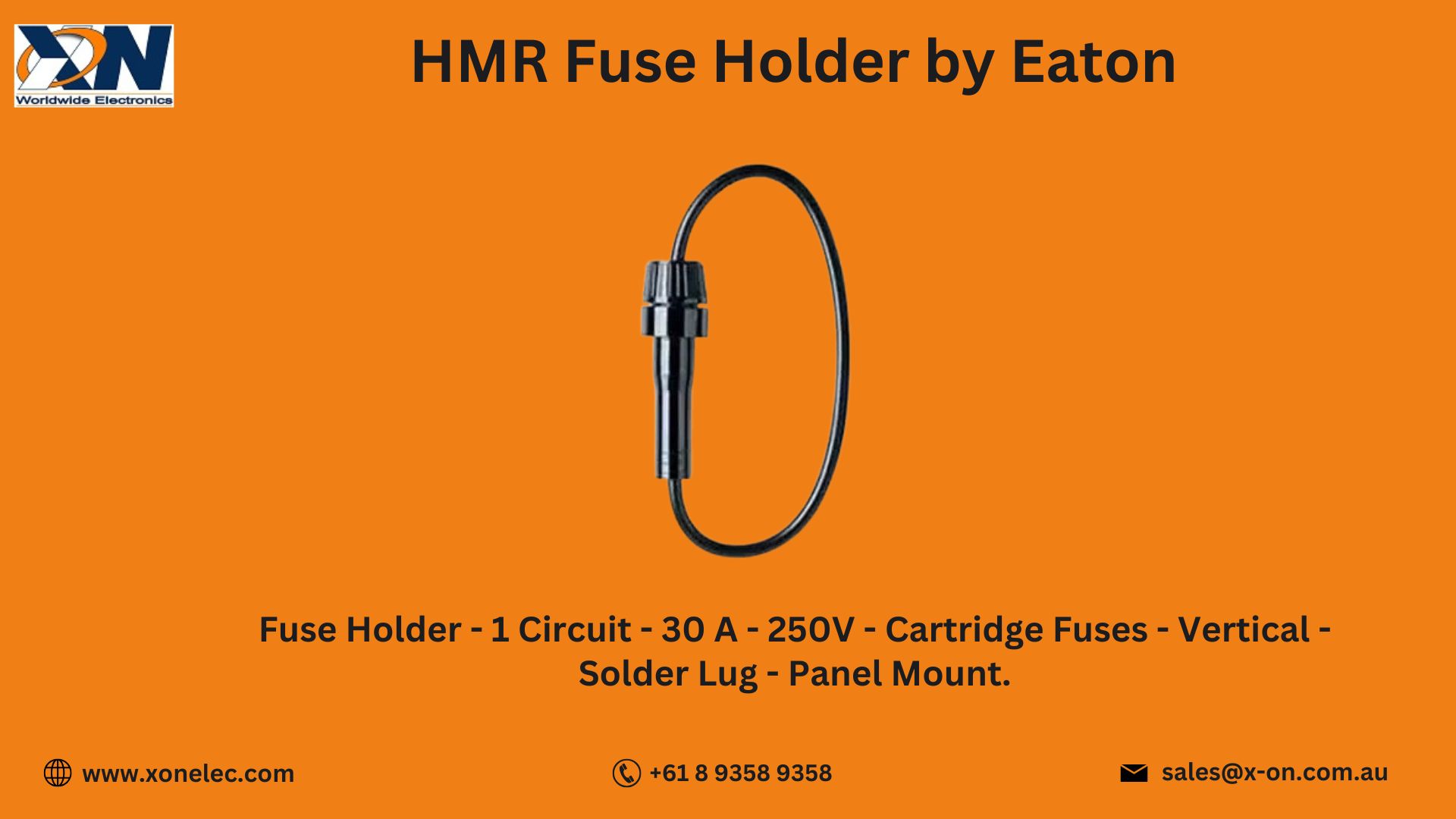

HMR Fuse Holder by Eaton – Reliable Circuit Protection for Industrial Applications
The Fuse Holder HMR by Eaton is a rugged and compact component designed to provide safe and reliable fuse mounting for a variety of electrical systems. Built with high-grade materials, this fuse holder ensures consistent circuit protection across harsh environments, making it a go-to solution for industrial, commercial, and panel-mount installations.
In this blog, we will explore the key specifications, application versatility, and reliability of Circuit Protection, Fuse Holders, Fuse Holder by Eaton, now available at Xon Electronics.
Technical Specifications of HMR Fuse Holder
-
Manufacturer: Eaton
-
Model: HMR Series
-
Mounting Type: Panel Mount
-
Fuse Type Supported: 13/32” x 1-1/2” (10mm x 38mm)
-
Voltage Rating: Up to 600V AC/DC
-
Current Rating: Up to 30A
-
Termination Style: Quick-connect or screw type
-
Category: Circuit Protection, Fuse Holders, Fuse Holder by Eaton
Its compact size, tool-free access, and high voltage rating make it ideal for a broad range of protection applications.
Key Features of HMR Fuse Holder
-
High Voltage Capacity – Safely handles circuits up to 600V
-
Tool-Free Access – Designed for easy fuse replacement
-
Robust Design – Durable materials withstand industrial stress
-
Secure Mounting – Firm panel-mount locking design
-
Versatile Termination – Quick-connect or screw terminals for flexibility
These attributes position the Circuit Protection, Fuse Holders, Fuse Holder by Eaton as a top-tier component for engineers who prioritize safety and performance.
Applications of HMR Fuse Holder
The HMR Fuse Holder by Eaton is commonly used in:
-
Industrial control panels
-
HVAC systems
-
Motor drives and power distribution units
-
Renewable energy installations
-
Test and measurement equipment
Its versatility and strong electrical characteristics make Circuit Protection, Fuse Holders, Fuse Holder by Eaton a preferred solution for reliable system protection.
Installation and Design Notes
The HMR series features quick installation with snap-in panel mounting and a secure cap to prevent accidental fuse dislodging. Connection types (quick-connect or screw) allow flexibility during system design and maintenance.
- Panel cutout: Standard 13/16” hole
- Wire gauge: Accepts up to 10 AWG
- Safety approvals: UL, CSA, IEC certified
Use Case Scenario: Industrial Motor Panel Protection
Scenario: A manufacturing plant needed to upgrade its motor control panels with a more reliable fuse-holding solution.
Problem: Previous holders were prone to heat damage and loose fuse contacts.
Solution: Engineers selected HMR Fuse Holder by Eaton for its superior contact integrity and easy maintenance.
Result: Enhanced safety, faster fuse changes, and consistent protection—reinforcing the value of Circuit Protection, Fuse Holders, Fuse Holder by Eaton in industrial setups.
Download Datasheet for HMR Fuse Holder
Need electrical drawings, compliance details, or technical specs?
Download HMR Fuse Holder Datasheet from Xon Electronics
Why Buy from Xon Electronics?
Xon Electronics supplies original Circuit Protection, Fuse Holders, Fuse Holder by Eaton with:
- Certified Eaton Components
- Worldwide Shipping – USA, India, Australia, Europe & More
- Stock Availability for Bulk Projects
- Expert Technical Support
- Secure Ordering with Global Logistics
Shop now at www.xonelec.com
Conclusion
The HMR Fuse Holder by Eaton is a reliable and user-friendly solution for electrical protection across industrial and commercial applications. Whether you’re upgrading a panel or building a new system, trust Circuit Protection, Fuse Holders, Fuse Holder by Eaton for dependable performance and easy integration—available globally through Xon Electronics.
FAQs – HMR Series by Eaton
Q1. What fuse sizes are compatible with the HMR Fuse Holder?
It supports 13/32” x 1-1/2” fuses (10mm x 38mm).
Q2. Is it certified for global use?
Yes, it is UL, CSA, and IEC approved for international standards.
Q3. Can it be used in high-voltage circuits?
Yes, up to 600V AC/DC depending on the installation.
Q4. Is panel mounting easy?
Yes, tool-free snap-in design ensures fast, secure panel mounting.
Q5. Where can I buy this product globally?
Order from www.xonelec.com with fast shipping to USA, India, Australia, Europe, and other countries.
