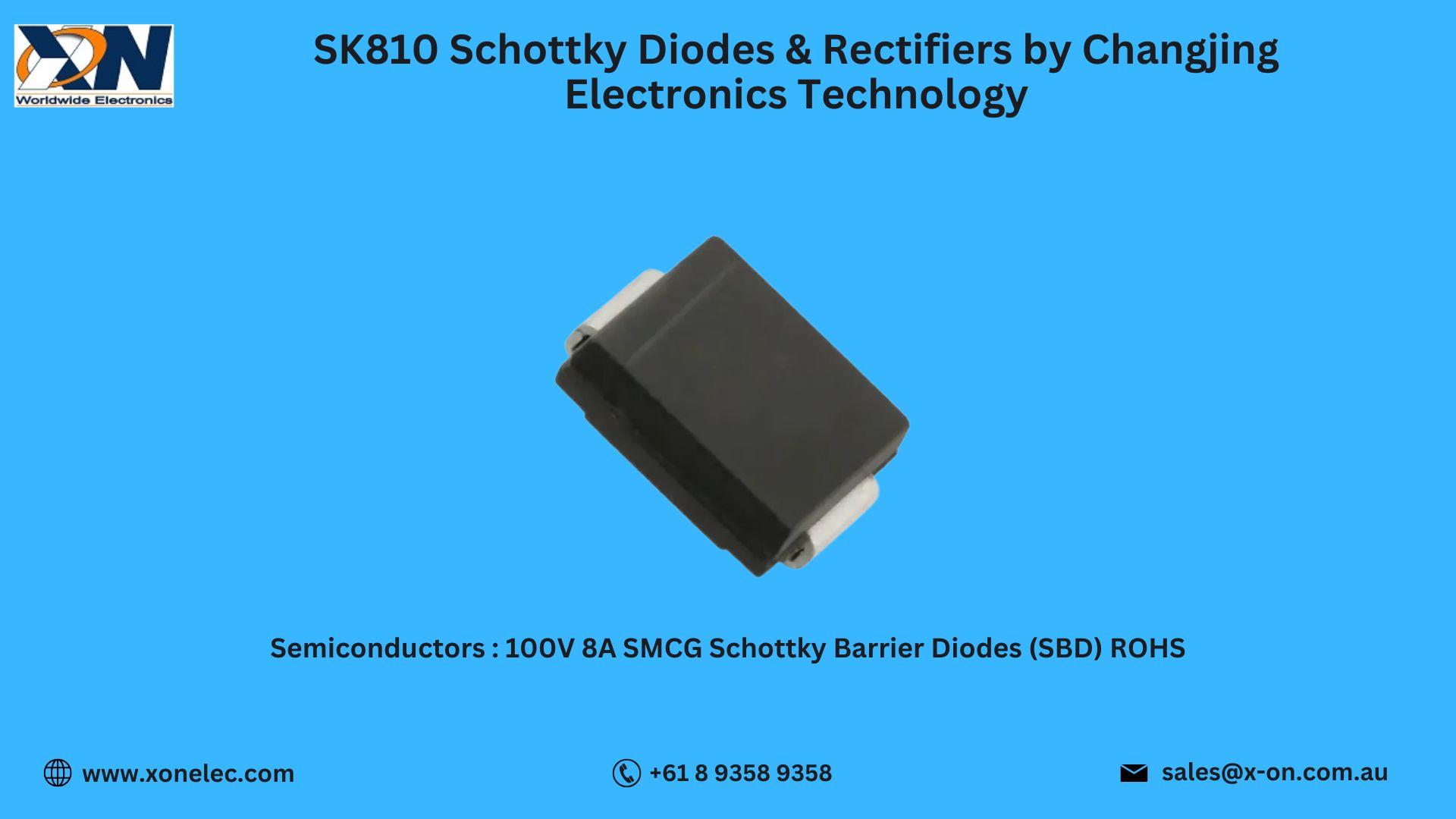

SK810 Schottky Diodes & Rectifiers by Changjing Electronics Technology – Reliable Power Components
The Schottky Diodes & Rectifiers SK810 by Changjing Electronics Technology are efficient, fast-switching Semiconductors designed for low forward voltage drop and high reliability. As part of the Discrete Semiconductors category, these Diodes & Rectifiers are widely applied in power supplies, converters, and consumer electronics. With the benefits of Schottky Diodes & Rectifiers, the SK810 ensures efficiency and durability in demanding power applications.
In this blog, we’ll cover the technical specifications, features, applications, pin configuration, use case scenario, datasheet link, and why you should buy online at XON Electronics.
1. Technical Specifications of SK810
-
Manufacturer: Changjing Electronics Technology
-
Part Number: SK810
-
Type: Schottky Diodes & Rectifiers
-
Category: Semiconductors, Discrete Semiconductors, Diodes & Rectifiers
-
Maximum Reverse Voltage (Vrrm): 100V
-
Average Forward Current (If): 8A
-
Forward Voltage Drop (Vf): 0.85V (typical)
-
Package: TO-220
-
Application Focus: High-efficiency rectification and switching
2. Key Features of SK810
-
Low forward voltage drop for reduced power loss
-
High current handling up to 8A
-
Fast switching capability
-
Reliable TO-220 package for heat dissipation
-
Stable performance across wide operating conditions
-
Ideal for rectification and power supply applications
These features make the SK810 Schottky Diodes & Rectifiers a dependable choice in the Semiconductors and Discrete Semiconductors family.
3. Applications of SK810
The SK810 Schottky Diodes & Rectifiers by Changjing Electronics Technology are used in:
-
Power supply rectification circuits
-
DC-DC converters and regulators
-
Consumer electronics and adapters
-
Industrial automation power modules
-
Battery chargers and renewable energy systems
-
Automotive electronic devices
4. Pin Configuration and Connection Overview
-
Cathode: Connected to negative polarity in rectification circuits
-
Anode: Standard current input terminal
-
Package: TO-220 design offers strong current and heat management.
5. Use Case Scenario: Power Supply Rectifier
Scenario: An OEM manufacturer required efficient diodes for power supply rectifiers.
Problem: Previous rectifiers generated excessive heat and reduced efficiency.
Solution: The SK810 Schottky Diodes & Rectifiers provided low forward voltage and fast recovery.
Result: Improved efficiency, reduced heat generation, and longer product lifespan.
6. Download Datasheet for SK810
Download SK810 Datasheet from XON Electronics
7. Why Buy from XON Electronics?
At XON Electronics, we provide genuine Changjing Electronics Technology components including the SK810 with:
- 100% Authentic Schottky Diodes & Rectifiers
- Worldwide shipping – USA, India, Australia, Europe & more
- Competitive OEM and distributor pricing
- Expert technical support
- Safe and secure online purchasing
8. Also Available from Other Manufacturers
Along with Changjing Electronics Technology, XON Electronics also supplies SK810 or equivalent Schottky Diodes & Rectifiers from:
This ensures a wide range of Diodes & Rectifiers within the Semiconductors category for various needs.
9. FAQs – SK810 Schottky Diodes & Rectifiers
Q1. What is the reverse voltage rating of SK810?
It supports up to 100V.
Q2. What is the average forward current?
It handles up to 8A.
Q3. What package type does SK810 use?
It comes in a TO-220 package.
Q4. Why use Schottky diodes?
They provide low forward voltage drop and fast switching.
Q5. Where can I buy SK810?
You can purchase it at www.xonelec.com with worldwide delivery.
Conclusion
The SK810 Schottky Diodes & Rectifiers by Changjing Electronics Technology are efficient, reliable, and durable solutions for power conversion and rectification. As part of the Semiconductors, Discrete Semiconductors, Diodes & Rectifiers, Schottky Diodes & Rectifiers family, they deliver superior performance for consumer, industrial, and automotive electronics.
Buy now at XON Electronics for trusted quality and fast global delivery.
