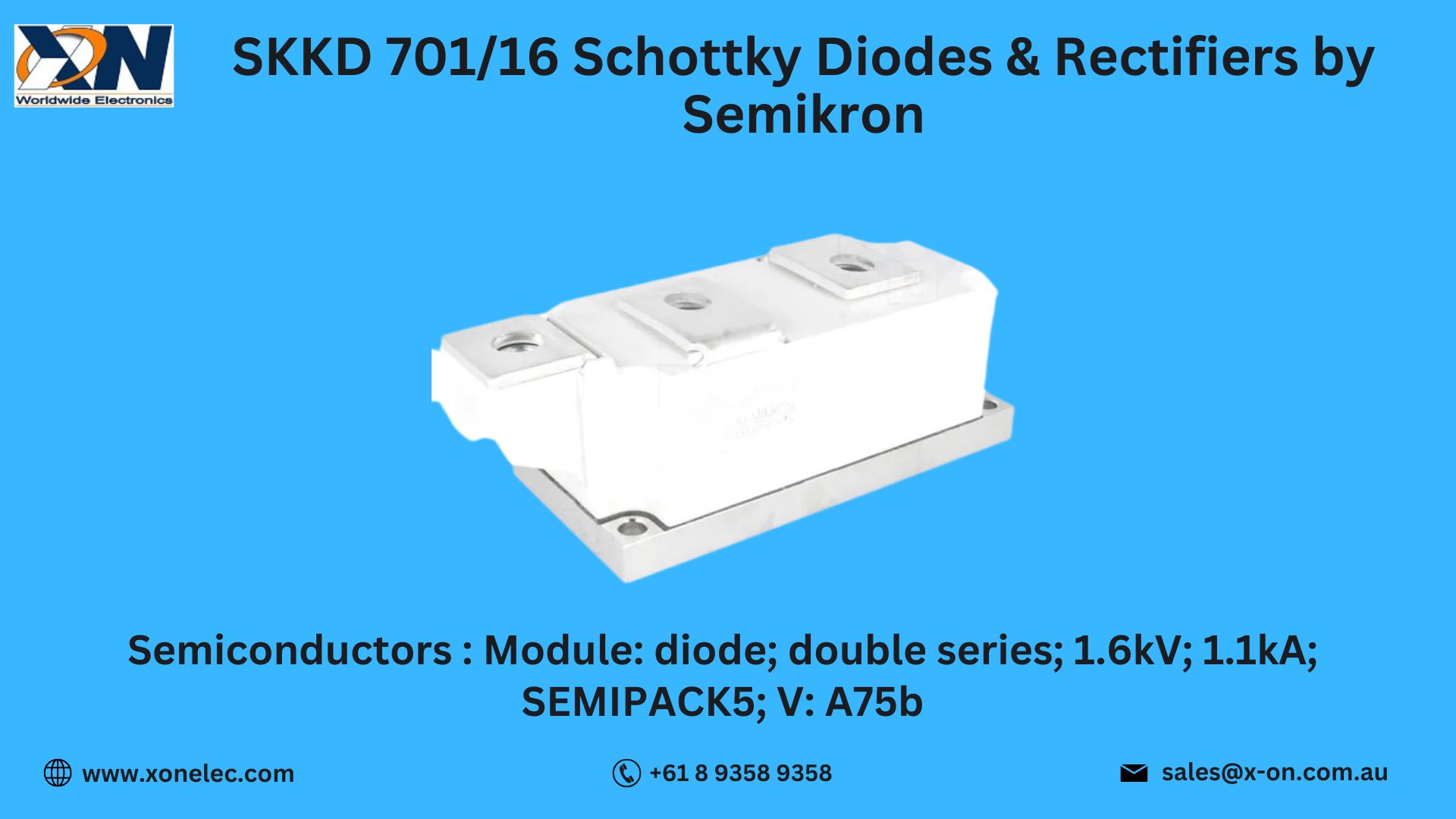

SKKD 701/16 Schottky Diodes & Rectifiers by Semikron – High-Efficiency Rectification for Power Applications

The Schottky Diodes & Rectifiers SKKD 701/16 by Semikron are high-performance, dual-diode modules designed to handle high current and voltage in industrial power electronics. Engineered for efficient energy conversion and minimal power loss, these rectifier modules are ideal for use in inverters, power supplies, and motor drives. As a trusted name in Semiconductors, Semikron delivers robust and reliable Discrete Semiconductors for heavy-duty applications.

In this blog, we will explore the SKKD 701/16’s technical specifications, key features, industrial applications, installation guidance, and how to purchase it from Xon Electronics.

Technical Specifications of SKKD 701/16

• Manufacturer: Semikron

• Part Number: SKKD 701/16

• Category: Semiconductors, Discrete Semiconductors, Diodes & Rectifiers, Schottky Diodes & Rectifiers

• Configuration: Dual common cathode

• IF(AV): 700A (average forward current)

• VRRM: 1600V (maximum repetitive reverse voltage)

• IFSM: 10,000A (surge forward current)

• Package Type: SEMIPACK 2

• Mounting Style: Screw mount

• Operating Temperature: -40°C to +150°C

• Isolation Voltage: 3600V

• Compliance: RoHS

With superior current handling and thermal performance, this Schottky module is ideal for high-demand industrial Semiconductors applications.

Key Features of SKKD 701/16 by Semikron

• High Forward Current Capacity – Supports 700A continuous operation

• Low Forward Voltage Drop – Reduces conduction losses for better efficiency

• Rugged Package Design – SEMIPACK 2 housing for secure mechanical fit

• Wide Temperature Range – Operates in extreme industrial environments

• Ideal for High-Power Conversion – Supports heavy-duty inverters and power control

These features make the SKKD 701/16 one of the top choices in Schottky Diodes & Rectifiers for high-performance Discrete Semiconductors.

Applications of SKKD 701/16 Schottky Diode Module

This rectifier module is used in various high-power electrical systems:

• Industrial Motor Drives

• High-Efficiency Power Supplies

• Renewable Energy Inverters (Solar/Wind)

• Battery Chargers and UPS Systems

• Welding Equipment

• HVAC and Compressor Drives

The SKKD 701/16 excels in critical environments where Diodes & Rectifiers must operate reliably with minimal losses in large-scale Semiconductors.

Wiring and Connection Overview

The SKKD 701/16 is easy to integrate into your power system using standard wiring practices:

• Mounting: Use screw terminals to fix the module to the heatsink surface

• Connections: Follow the common cathode layout for input and output terminals

• Thermal Interface: Apply thermal compound between baseplate and heatsink

• Isolation: Ensure proper electrical isolation during installation

• Cooling: Active or passive cooling recommended depending on load current

This module supports simple, secure mounting for fast integration into Discrete Semiconductors platforms.

Use Case Scenario: Solar Inverter Rectification Stage

Scenario: A solar equipment manufacturer required a robust rectifier module for the input stage of their new 3-phase inverter system.

Problem: Existing modules couldn't handle the surge current and led to early system failure.

Solution: The team selected the SKKD 701/16 Schottky Diodes & Rectifiers by Semikron for its high surge capacity and low forward voltage drop.

Result: Improved energy efficiency, higher power tolerance, and increased inverter reliability in real-world solar deployments.

This showcases how efficient Schottky Diodes & Rectifiers can enhance renewable energy systems powered by Semiconductors.

Download Datasheet for SKKD 701/16

Need electrical specs, mechanical dimensions, or thermal data?

Download SKKD 701/16 Datasheet from Xon Electronics

This datasheet provides everything needed to successfully implement the module in your Diodes & Rectifiers design.

Why Buy from Xon Electronics?

Xon Electronics offers trusted sourcing for industrial-grade Schottky Diodes & Rectifiers and other Discrete Semiconductors, with:

• 100% Authentic Semikron Components
• Global Shipping – USA, India, Australia, Europe & more
• Bulk Order Support for OEMs
• Application and Technical Support Available
• Secure Online Checkout

Visit www.xonelec.com to explore our complete catalog of high-efficiency Semiconductors.

Conclusion

The SKKD 701/16 Schottky Diodes & Rectifiers by Semikron offer excellent power handling, thermal management, and efficiency for high-current industrial applications. Designed for longevity and built to withstand extreme electrical conditions, this module is a reliable option in the field of advanced Discrete Semiconductors and Diodes & Rectifiers.

Now available at Xon Electronics—your global partner for industrial-grade Semiconductors and professional Schottky Diodes & Rectifiers.

FAQs – SKKD 701/16 by Semikron

Q1. What is the current capacity of this module?
It can handle 700A average forward current.

Q2. What voltage does it support?
It supports up to 1600V VRRM (reverse repetitive voltage).

Q3. What type of configuration is this diode?
It is a dual diode module with common cathode configuration.

Q4. Is the package insulated?
Yes, with 3600V isolation from terminals to the baseplate.

Q5. Where can I buy this globally?
You can purchase it from www.xonelec.com with shipping to USA, India, Australia, Europe, and other countries.
