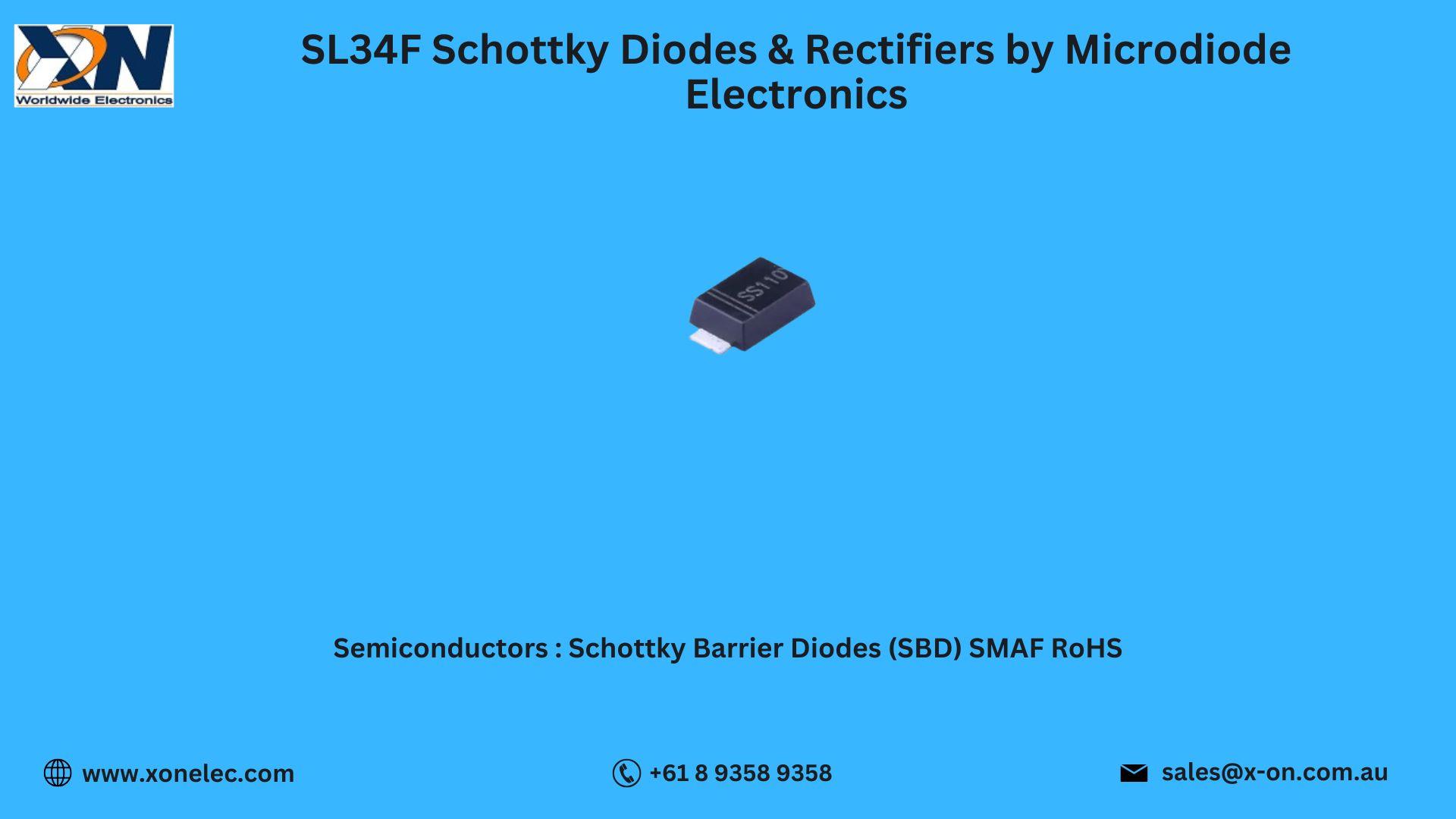

SL34F Schottky Diodes & Rectifiers by Microdiode Electronics – High-Efficiency Power Devices
The Schottky Diodes & Rectifiers SL34F by Microdiode Electronics are compact, efficient, and reliable Semiconductors designed for high-speed switching and low forward voltage drop. Belonging to the Discrete Semiconductors family, these Diodes & Rectifiers are widely applied in power supplies, converters, and consumer electronics. With their excellent thermal stability, the SL34F Schottky Diodes & Rectifiers provide robust performance in demanding environments.
In this blog, we’ll cover the technical specifications, features, applications, pin configuration, real-world use case, datasheet link, and why you should buy online at XON Electronics.
1. Technical Specifications of SL34F
-
Manufacturer: Microdiode Electronics
-
Part Number: SL34F
-
Type: Schottky Diodes & Rectifiers
-
Category: Semiconductors, Discrete Semiconductors, Diodes & Rectifiers
-
Maximum Repetitive Reverse Voltage (Vrrm): 40V
-
Average Forward Current (If): 3A
-
Forward Voltage Drop (Vf): 0.55V (typical)
-
Reverse Recovery Time: Very fast switching
-
Package: SMA (Surface Mount)
2. Key Features of SL34F
-
Low forward voltage drop for energy efficiency
-
Fast switching speed for modern electronics
-
Surface-mount SMA package for compact designs
-
High surge current capability
-
Stable performance across wide temperature ranges
-
Optimized for low-loss power conversion
These features make the SL34F Schottky Diodes & Rectifiers a preferred choice for reliable Discrete Semiconductors.
3. Applications of SL34F
The SL34F Schottky Diodes & Rectifiers by Microdiode Electronics are used in:
-
Power supply rectification
-
DC-DC converters and regulators
-
Consumer electronic devices
-
Battery chargers and adapters
-
Industrial automation systems
-
Automotive electronic circuits
4. Pin Configuration and Connection Overview
-
Cathode: Marked terminal for reverse blocking
-
Anode: Terminal for current flow
-
SMA surface-mount design ensures space-saving installation on PCBs.
5. Use Case Scenario: DC-DC Converter Module
Scenario: An embedded systems manufacturer needed a reliable diode for high-frequency DC-DC converters.
Problem: Standard rectifiers caused efficiency loss due to higher voltage drops.
Solution: The SL34F Schottky Diodes & Rectifiers offered low Vf and fast switching.
Result: Improved power efficiency, reduced heat generation, and longer module lifespan.
6. Download Datasheet for SL34F
Download SL34F Datasheet from XON Electronics
7. Why Buy from XON Electronics?
At XON Electronics, we provide genuine Microdiode Electronics products including the SL34F with:
- 100% Authentic Schottky Diodes & Rectifiers
- Worldwide shipping – USA, India, Australia, Europe & more
- Bulk pricing for OEMs and distributors
- Technical support for integration
- Secure and safe online ordering
8. Also Available from Other Manufacturers
Along with Microdiode Electronics, XON Electronics also supplies SL34F or equivalent Schottky Diodes & Rectifiers from:
This ensures a wide selection of Diodes & Rectifiers in the Semiconductors category.
9. FAQs – SL34F Schottky Diodes & Rectifiers
Q1. What is the reverse voltage rating of SL34F?
It supports up to 40V.
Q2. What is the average forward current?
It handles up to 3A.
Q3. What package does it come in?
It comes in a space-efficient SMA package.
Q4. What is the main advantage of Schottky diodes?
Low forward voltage drop and fast switching.
Q5. Where can I buy SL34F?
You can purchase it from www.xonelec.com with worldwide shipping.
Conclusion
The SL34F Schottky Diodes & Rectifiers by Microdiode Electronics are efficient, compact, and reliable solutions for power conversion and rectification. As part of the Semiconductors, Discrete Semiconductors, Diodes & Rectifiers, Schottky Diodes & Rectifiers category, they ensure superior efficiency and durability in consumer, industrial, and automotive applications.
Buy now at XON Electronics for trusted quality and global delivery.
