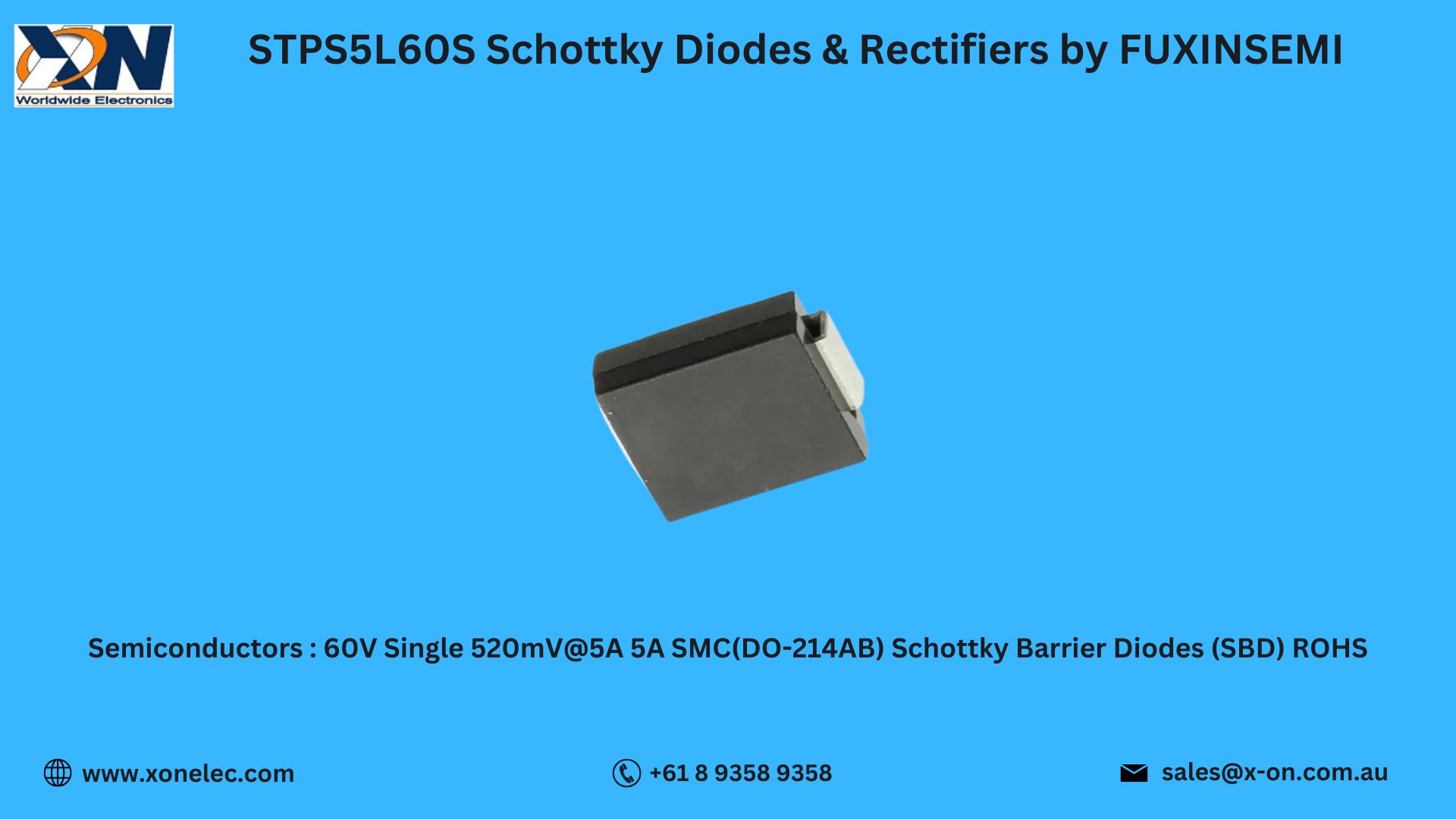

STPS5L60S Schottky Diodes & Rectifiers by FUXINSEMI – Buy Online at XON
The Schottky Diodes & Rectifiers STPS5L60S by FUXINSEMI are designed for high-efficiency power conversion, fast switching, and low forward voltage drop. Belonging to the Semiconductors, Discrete Semiconductors, Diodes & Rectifiers, Schottky Diodes & Rectifiers category, these components deliver reliable performance for modern power electronics applications.
1. Technical Specifications of STPS5L60S
-
Manufacturer: FUXINSEMI
-
Part Number: STPS5L60S
-
Category: Semiconductors, Discrete Semiconductors, Diodes & Rectifiers, Schottky Diodes & Rectifiers
-
Type: Schottky Rectifier
-
Voltage Rating: 60V
-
Current Rating: 5A
-
Package: TO-220AC
-
Operating Temperature: -65°C to +150°C
2. Key Features of STPS5L60S
-
Low forward voltage drop for energy efficiency
-
Fast recovery time for high-speed switching
-
Low power loss and reduced heat generation
-
High surge capability for reliable operation
-
Compact TO-220AC package for easy integration
3. Applications of STPS5L60S
-
Power supply rectification
-
DC/DC converters
-
Battery charging circuits
-
Automotive electronics
-
Consumer and industrial electronic devices
4. Wiring and Connection Overview
-
Anode (A): Connects to positive input of the circuit
-
Cathode (K): Connects to the negative output/load
-
Mounting: TO-220AC package allows for PCB or heat sink mounting for thermal management
5. Use Case Scenario – Efficient Power Supply
Scenario: An electronics manufacturer needed a diode with high efficiency and fast response.
Problem: Traditional rectifiers caused higher power loss and heating.
Solution: The STPS5L60S Schottky Diodes & Rectifiers by FUXINSEMI offered lower voltage drop and faster recovery.
Result: Improved energy efficiency and stable performance in their power supply design.
6. Download Datasheet for STPS5L60S
For detailed electrical and mechanical specifications:
Download STPS5L60S Datasheet from Xon Electronics
7. Also Available from Other Manufacturers
8. Why Buy from Xon Electronics?
-
Genuine Diodes & Rectifiers from top manufacturers
-
Worldwide delivery – USA, India, Australia, Europe & more
-
Bulk and single-piece supply available
-
Expert assistance in product selection
-
Secure and efficient global ordering process
9. FAQs – STPS5L60S Schottky Diodes & Rectifiers
Q1: What is the current rating of STPS5L60S?
A: It supports up to 5A current.
Q2: Can it be used in automotive applications?
A: Yes, it is suitable for automotive electronics.
Q3: What makes it energy efficient?
A: Its low forward voltage drop reduces power loss.
Q4: Which package is available?
A: It comes in a TO-220AC package.
Q5: Where can I buy it?
A: At www.xonelec.com with global shipping options.
Conclusion
The STPS5L60S Schottky Diodes & Rectifiers by FUXINSEMI offer superior efficiency, fast switching, and reliable performance for power supplies, converters, and charging systems. As part of the Semiconductors, Discrete Semiconductors, Diodes & Rectifiers, Schottky Diodes & Rectifiers category, they are a trusted choice for designers worldwide. Order today at Xon Electronics with delivery to USA, India, Australia, Europe, and beyond.
