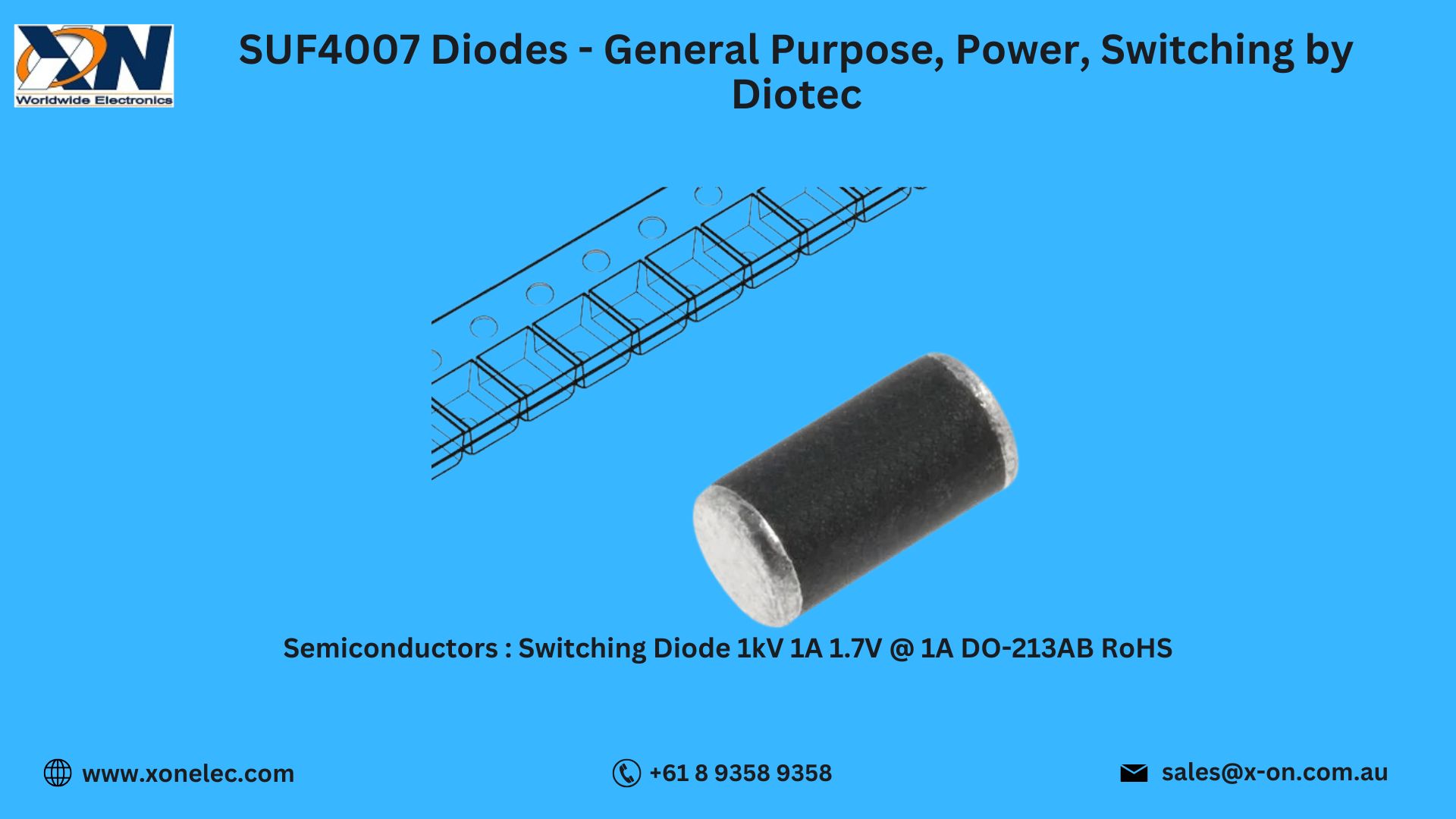

SUF4007 Diodes - General Purpose, Power, Switching by Diotec – Buy Online at XON
The Diodes - General Purpose, Power, Switching SUF4007 by Diotec are designed for versatile rectification and power applications. Belonging to the Semiconductors, Discrete Semiconductors, Diodes & Rectifiers, Diodes - General Purpose, Power, Switching category, these diodes ensure high reliability, fast recovery, and efficient performance in industrial and consumer electronics.
1. Technical Specifications of SUF4007
-
Manufacturer: Diotec
-
Part Number: SUF4007
-
Category: Semiconductors, Discrete Semiconductors, Diodes & Rectifiers, Diodes - General Purpose, Power, Switching
-
Type: General Purpose Rectifier Diode
-
Reverse Voltage (VR): 1000V
-
Forward Current (IF): 1A
-
Package: SMA/DO-214AC
-
Operating Temperature Range: -65°C to +175°C
2. Key Features of SUF4007
-
High reverse voltage capability (1000V)
-
Reliable rectification for AC/DC conversion
-
Compact SMA/DO-214AC package
-
Low forward voltage drop for energy efficiency
-
Wide operating temperature range for durability
3. Applications of SUF4007
-
General rectification in power supplies
-
Consumer electronics and adapters
-
Battery chargers
-
Industrial power management systems
-
Switching applications in DC circuits
4. Wiring and Connection Overview
-
Anode (A): Connects to positive input
-
Cathode (K): Connects to negative/load side
-
Mounting: SMA/DO-214AC package allows for reliable PCB installation and thermal efficiency
5. Use Case Scenario – Power Supply Rectification
Scenario: A power equipment manufacturer needed a reliable rectifier diode for AC to DC conversion.
Problem: Standard diodes failed under high voltage stress.
Solution: The SUF4007 Diodes - General Purpose, Power, Switching by Diotec provided 1000V handling capability and efficiency.
Result: Stable, efficient, and long-lasting power supply performance.
6. Download Datasheet for SUF4007
For complete specifications and design details:
Download SUF4007 Datasheet from Xon Electronics
7. Also Available from Other Manufacturers
8. Why Buy from Xon Electronics?
-
Genuine Diodes & Rectifiers from leading brands
-
Global shipping to USA, India, Australia, Europe & more
-
Support for bulk and OEM requirements
-
Expert assistance in component selection
-
Secure and reliable online ordering
9. FAQs – SUF4007 Diodes
Q1: What is the maximum reverse voltage of SUF4007?
A: It supports up to 1000V.
Q2: Can it be used in adapters and chargers?
A: Yes, it is widely used in consumer power adapters.
Q3: What package does it come in?
A: SMA/DO-214AC package.
Q4: Is it suitable for switching circuits?
A: Yes, it can be used for switching and rectification applications.
Q5: Where can I purchase it?
A: At www.xonelec.com with worldwide delivery options.
Conclusion
The SUF4007 Diodes - General Purpose, Power, Switching by Diotec offer high voltage capability, efficient rectification, and reliable performance across industrial and consumer applications. As part of the Semiconductors, Discrete Semiconductors, Diodes & Rectifiers, Diodes - General Purpose, Power, Switching category, they are a dependable choice for power engineers worldwide. Buy online from Xon Electronics with global delivery to USA, India, Australia, Europe, and more.
