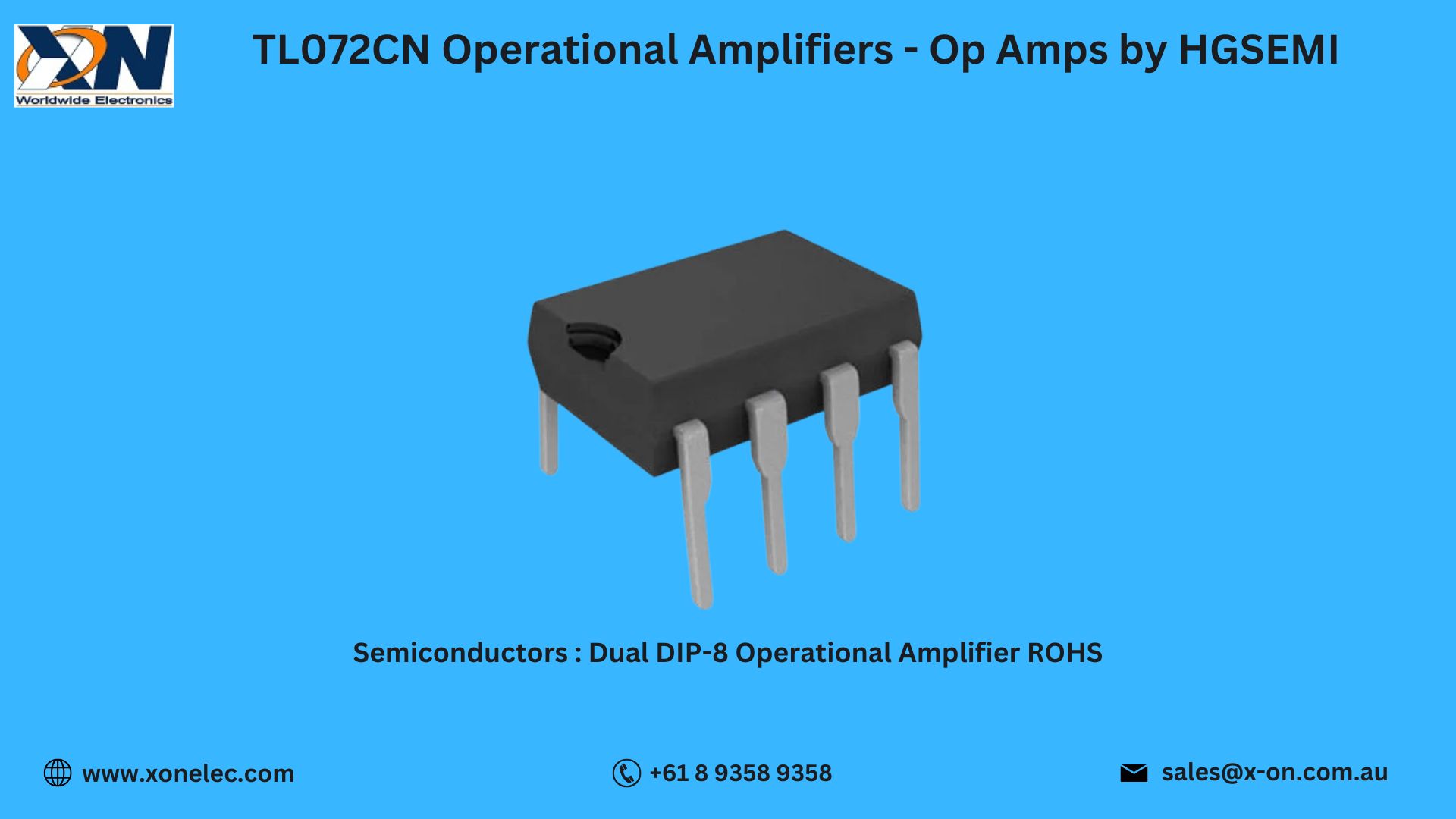

TL072CN Operational Amplifiers - Op Amps by HGSEMI
The Operational Amplifiers - Op Amps TL072CN by HGSEMI are high-performance dual J-FET input amplifiers designed for precision signal processing. With low noise, low distortion, and a high slew rate, they are a popular choice in audio equipment, instrumentation, and industrial applications. Belonging to the Semiconductors, Integrated Circuits - ICs, Amplifier ICs, and Operational Amplifiers - Op Amps category, they ensure excellent accuracy and stability for a wide range of designs.
Technical Specifications of TL072CN
-
Manufacturer: HGSEMI
-
Part Number: TL072CN
-
Category: Semiconductors, Integrated Circuits - ICs, Amplifier ICs, Operational Amplifiers - Op Amps
-
Amplifier Type: Dual J-FET input op amp
-
Supply Voltage Range: ±3V to ±18V
-
Slew Rate: 13V/µs
-
Gain Bandwidth Product: 3MHz
-
Input Bias Current: 65pA
-
Package: PDIP-8
-
Operating Temperature Range: -40°C to +85°C
Key Features of TL072CN
-
Low noise and distortion for superior audio clarity
-
High slew rate for fast transient response
-
Wide bandwidth for precision applications
-
Very low input bias and offset currents
-
Standard PDIP-8 package for easy PCB integration
Applications of TL072CN
-
Professional audio mixers and amplifiers
-
Active filter designs
-
Industrial sensor signal processing
-
Precision oscillators and waveform generators
-
Laboratory test and measurement equipment
Wiring and Connection Overview
When integrating the TL072CN Operational Amplifiers - Op Amps into your circuit:
-
Place decoupling capacitors near the power supply pins
-
Keep signal traces short to minimize interference
-
Operate within the recommended voltage range
-
Design the feedback network to ensure stability
Use Case Scenario – Professional Audio Mixer
Problem: Need a low-noise, high-performance op amp for audio mixing.
Solution: The TL072CN Operational Amplifiers - Op Amps by HGSEMI provide minimal noise and distortion, ensuring pristine sound quality.
Result: Enhanced audio clarity and reliable long-term performance.
Download Datasheet for TL072CN
[Download TL072CN Datasheet from Xon Electronics]
Also available from other manufacturers
Why Buy from Xon Electronics?
- 100% original parts
- Worldwide delivery to USA, India, Australia, Europe, and beyond
- Best price guarantee
- Technical datasheets available
- Safe and secure transactions
FAQs – TL072CN Operational Amplifiers - Op Amps
Q1. Is the TL072CN suitable for audio applications?
Yes, it’s widely used in professional audio for its low noise and distortion.
Q2. Can it run on a single supply voltage?
Yes, with proper biasing it can operate from a single supply.
Q3. What is its typical package type?
It comes in a PDIP-8 package.
Q4. Do you ship internationally?
Yes, we ship to USA, India, Australia, Europe, and other countries.
Conclusion
The TL072CN Operational Amplifiers - Op Amps by HGSEMI deliver exceptional performance for audio, industrial, and measurement applications. As a top choice in the Semiconductors, Integrated Circuits - ICs, Amplifier ICs, and Operational Amplifiers - Op Amps category, they ensure precision and reliability in every project.
