X-On Electronics has gained recognition as a prominent supplier of PTS645SM50SMTR92LF Switch Bezels / Switch Caps across the USA, India, Europe, Australia, and various other global locations. PTS645SM50SMTR92LF Switch Bezels / Switch Caps are a product manufactured by C&K. We provide cost-effective solutions for Switch Bezels / Switch Caps, ensuring timely deliveries around the world.

PTS645SM50SMTR92LF C&K

PTS645SM50SMTR92LF electronic component of C&K

PTS645SM50SMTR92LF Switch Bezels / Switch Caps

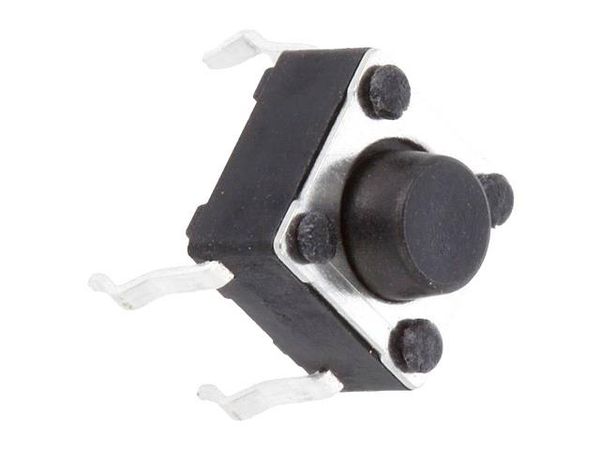

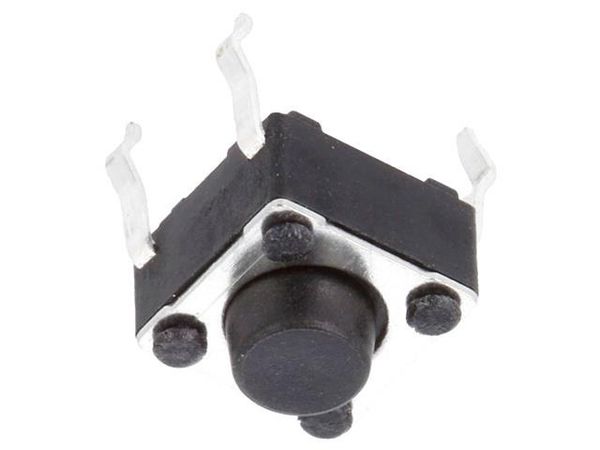

Images are for reference only
See Product Specifications

Part No.	PTS645SM50SMTR92LF
Manufacturer:	C&K
Category:	Switch Bezels / Switch Caps
Description:	Microswitch TACT; SPST-NO; Pos: 2; 0.05A/12VDC; SMT; none; 1.6N
Datasheet:	PTS645SM50SMTR92LF Datasheet (PDF)
	Large This product is classified as Large/Heavy, additional shipping charges may apply. A customer service representative may contact you after ordering to confirm exact shipping charges

Price (USD)

5: USD 0.3734 ea
Line Total: USD 1.87

Availability - 615
Ship by Thu. 17 Jul to Mon. 21 Jul

MOQ: 5 Multiples: 1
Pack Size: 1

PTS645SM50SMTR92LF More Buying Options & Price Grid(s)

Please wait...

Availability Price Buy Price Quantity

615

Ship by Thu. 17 Jul to Mon. 21 Jul

MOQ : 5
Multiples : 1

5 : USD 0.3734
67 : USD 0.3073
182 : USD 0.2911
500 : USD 0.2837
1000 : USD 0.2808

Specifications

Manufacturer

C&K C&K

Product Category

Switch Bezels / Switch Caps Switch Bezels / Switch Caps

Category

Switch Bezels / Switch Caps Switch Bezels / Switch Caps

Ip Rating

IP40 IP40

Kind Of Package

TAPE , REEL TAPE , REEL

Number Of Terminals

4 4

Number Of Positions

2 2

Actuator Colour

blue blue

Contact Plating

silver plated silver plated

Leads

for PCB for PCB

Switching Method

OFF - (ON) OFF - (ON)

Illumination

none none

Max. Contact Resistance

: 100 mOhms : 100 mOhms

Mounting

SMT SMT

Contacts Configuration

SPST - NO SPST - NO

Mechanical Durability

100000 cycles 100000 cycles

Operating Force

1.6N 1.6N

Button Height

5 mm 5 mm

Button Shape

round round

Key Stroke

0.25mm 0.25mm

Terminal Pitch

4.5x9mm 4.5x9mm

Min. Insulation Resistance

100G Ohms 100G Ohms

Quantity In Package

1000PCS. 1000PCS.

Type Of Switch

microswitch TACT microswitch TACT

Dc Contacts Rating @R

0.05A / 12V DC 0.05A / 12V DC

Stable Positions Number

1 1

Operating Temperature

- 20 To 85 C - 20 To 85 C

Body Dimensions

6x6x3.45mm 6x6x3.45mm

Manufacturer Series

PTS645 PTS645

Notes:- Show Stocked Products With Similar Attributes.
