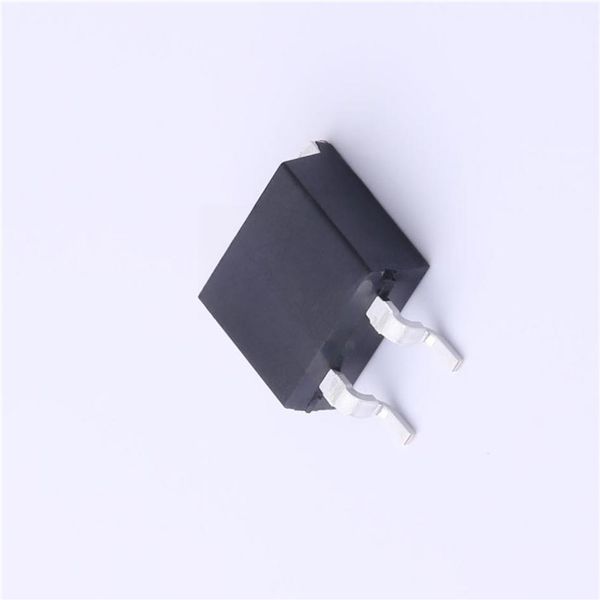

IDK20G120C5XTMA1 Infineon

IDK20G120C5 IGC13R65U8W2 IGC13R65U8W2 IGC13R65U8W2 IGC13R65U8W2 th TM 5 Generation CoolSiC 1200V Schottky Diode IGC13R65U8W2 SiC Diode Features Revolutionary semiconductor material - Silicon Carbide No reverse recovery current / no forward recovery Temperature independent switching behaviour Low forward voltage even at high operating temperature 1 Tight forward voltage distribution 2 Excellent thermal performance Extended surge current capability Pin definition Specified dv/dt ruggedness 1 Pin 1 and backside: Cathode Pb-free lead plating RoHS compliant CASE Pin 2: Anode 2 Potential applications Drives Industrial power supplies: Industrial UPS Solar central inverters and Solar string inverter Product validation Qualified for industrial applications according to the relevant tests of JEDEC 47/20/22 Description System efficiency improvement over Si diodes Enabling higher frequency / increased power density solutions System size/cost savings due to reduced heatsink requirements and smaller magnetics Reduced EMI Highest efficiency across the entire load range Robust diode operation during surge events High reliability Related Links: www.infineon.com/SiC Key performance parameters Type V I Q T Marking Package DC F C vj,max IDK20G120C5 1200 V 20 A 82nC 175C D2012C5 PG-TO263-2 Datasheet Please read the Important Notice and Warnings at the end of this document V 2.1 www.infineon.com page 1 of 12 2021-07-14 th TM 5 Generation CoolSiC 1200V Schottky Diode SiC Diode Ta ble of contents Table of contents Features ........................................................................................................................................ 1 Potential applications ..................................................................................................................... 1 Product validation .......................................................................................................................... 1 Description .................................................................................................................................... 1 Key performance parameters ........................................................................................................... 1 Table of contents ............................................................................................................................ 2 1 Maximum ratings ................................................................................................................... 3 2 Thermal resistances ............................................................................................................... 5 3 Electrical Characteristics ........................................................................................................ 6 4 Electrical Characteristics Diagrams .......................................................................................... 7 5 Package Drawing .................................................................................................................. 10 Revision history............................................................................................................................. 11 Datasheet Please read the Important Notice and Warnings at the end of this document V 2.1 www.infineon.com page 2 of 12 2021-07-14
