NTE109-5

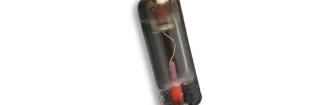

NTE109 Germanium Diode Fast Switching General Purpose Description: The NTE109 is a high conductance device with good switching characteristics for low impedance cir- cuits, high resistancehigh conductance for efficient coupling, clamping and matrix service, and for- ward and inverse pulse recovery for critical pulse applications. Absolute Maximum Ratings: (T = +25C unles otherwise specified) A Continuous Inverse Operating Voltage (Note 1), V . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 80V cont Continuous Average Forward Current, I 60mA. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . F Peak Recurrent Forward Current (Note 2) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 325mA Forward Surge Current (1 sec), I 500mA. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . FSM Electrical Characteristics: Peak Reverse Voltage, P . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 100V RV Forward Voltage Drop (I = 200mA), V . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1.0V F F Maximum Reverse Leakage (V = 50V), I . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 100 A R R Additional Specifications: Ambient Temperature Range, T 78. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . to +90C A Absolute Maximum Storage Temperature Range, T . . . . . . . . . . . . . . . . . . . . . . . . . 78 to +100C stg Average Power Dissipation (T = +25C), P 80mW. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . A D Derate Above 25C 10mW/10. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . C Average Shunt Capacitance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 0.5 fd Average 100mc Rect. Efficient . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 55% Note 1 The continuous inverse operating voltage rating, V must be reduced when the diode is cont operated at elevated junction temperature. The percent derating of V for each 10C tem- cont perature increment above 25C is equal to V /10. For critical high temperaturehigh volt- cont age applications, is recommended that diodes be 100% tested and specified at the elevated temperature. Note 2 The peak operating current is generally the controlling factor in AC rectifier service and may be exceeded for pulses of less than 200 s duration. 1.000 .300 (25.4) (7.63) Min Typ .022 (.509) Dia Max .107 (2.72) Dia Max Color Band Denotes CathodeX-ON Electronics Largest Supplier of Electrical and Electronic Components Click to view similar products for nte manufacturer: Other Similar products are found below : 747 797 868 1724 NEH680M50FE NEHH1.0M450CB NTE48 NTE526A 228A 231 954 2023 510 R04-11A30-120 04-SLPE3750A 5615 591 7056 NTE5710 7448 NEH.10M50AA NEH2.2M63AA NEH330M35DD NEH33M10AA NEV.22M100AA TP0006-100 NTE182 NTE528 NTE542 NTE74154 04-SCBW25L-BK 04-SCBW32L-BK 04-SCW10C-BK 04-SCBW19L-GR 04-SCW19L-WH 04- SCW19L-OR 04-SCW38L-WH 04-SCBW50L-OR 04-SCBW50L-GR 04-SCW10C-GR 04-SCW10C-OR 04-SCBW32L-GR 04-SCBW32L- WH 04-SCBW32L-OR 04-SCBW6C-WH 04-SCBW6C-GR 04-SCBW6C-OR 04-SCBW25L-GR 04-SCBW25L-WH 04-ESNF-500L
