PP000249 Pro Power

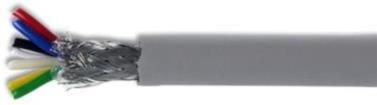

Defence Standard 61-12 Part 4 - 7-2-C Screened Multicore Cable Specifications: Conductor Material : Tinned Copper 2 Conductor Area CSA : 0.22mm Construction : T0.2 0.0087 Stranded Dia.(mm) : 0.58 Insulation Material : PVC Insulation Colours : See Insulation Colours Table Insulation Thickness : 0.31 Insulation Dia.(+/-0.1mm) : 1.2 Braid Shield : Tinned Copper Nylon Rip Cord : 150D Jacket Material : PVC Jacket Colour : Grey Jacket Thickness(mm) : 0.35 Electrical Characteristics: Max. Conductor DC Resistance at 20C (/Km) : <93.8 20C Insulation Resistance (M/Km) : >200 Rated Temperature(C) : 80 Rated Voltage(V) : 440 Insulation Colours table Conductor Conductor Conductor Colour Colour Colour Number Number Number 1 Red 13 Red/Blue 25 Yellow/Green 2 Blue 14 Green/Red 26 White/Green 3 Green 15 Yellow/Red 27 Green/Black 4 Yellow 16 White/Red 28 Orange/Green 5 White 17 Red/Black 29 Grey/Green 6 Black 18 Red/Brown 30 Yellow/Brown 7 Brown 19 Yellow/Blue 31 White/Brown 8 Violet 20 White/Blue 32 Brown/Black 9 Orange 21 Blue/Black 33 Grey/Brown 10 Pink 22 Orange/Blue 34 Yellow/Violet 11 Turquoise 23 Green/Blue 35 Violet/Black 12 Grey 24 Grey/Blue 36 White/Violet www.element14.com www.farnell.com www.newark.com www.cpc.co.uk Page <1> 22/04/15 V1.4Defence Standard 61-12 Part 4 - 7-2-C Screened Multicore Cable Part Number Table No. of Jacket Diameter Reel Length Description Braiding Filler Part Number Conductors (mm) (m ) 25 PP000244 4 4.4 T0.1168 - 100 PP000245 25 PP000246 8 6.1 T0.15168 1.9PVC Strip 100 PP000247 25 PP000248 Cable, Screen, 7/0.2mm 12 6.9 T0.15168 100 PP000249 - 25 PP000250 20 8.6 T0.15247 100 PP000251 25 PP000252 36 10.8 T0.15249 1.2PVC Strip 100 PP000253 Important Notice : This data sheet and its contents (the Information) belong to the members of the Premier Farnell group of companies (the Group) or are licensed to it. No licence is granted for the use of it other than for information purposes in connection with the products to which it relates. No licence of any intellectual property rights is granted. The Information is subject to change without notice and replaces all data sheets previously supplied. The Information supplied is believed to be accurate but the Group assumes no responsibility for its accuracy or completeness, any error in or omission from it or for any use made of it. Users of this data sheet should check for themselves the Information and the suitability of the products for their purpose and not make any assumptions based on information included or omitted. Liability for loss or damage resulting from any reliance on the Information or use of it (including liability resulting from negligence or where the Group was aware of the possibility of such loss or damage arising) is excluded. This will not operate to limit or restrict the Groups liability for death or personal injury resulting from its negligence. pro - POWER is the registered trademark of the Group. Premier Farnell plc 2012. www.element14.com www.farnell.com www.newark.com www.cpc.co.uk Page <2> 22/04/15 V1.4
