520-4 RADEMACHER

Name: 520-4
Brand: RADEMACHER
SKU: 5204_RADEMACHER
Availability: InStock
Rating: 5 (11 reviews)

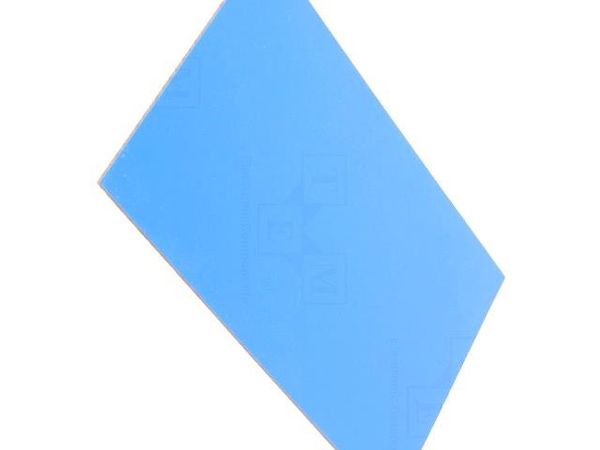

520-4 electronic component of RADEMACHER

Images are for reference only
See Product Specifications

Part No.	520-4
Manufacturer:	RADEMACHER
Category:	Copper Clad Boards
Description:	Laminate; hard paper; 1.6mm; L: 100mm; W: 160mm
Datasheet:
	Large This product is classified as Large/Heavy, additional shipping charges may apply. A customer service representative may contact you after ordering to confirm exact shipping charges

Price (USD)

1: USD 3.626 ea
Line Total: USD 3.63

Availability - 49
Ship by Mon. 02 Jun to Wed. 04 Jun

MOQ: 1 Multiples: 1
Pack Size: 1

520-4 More Buying Options & Price Grid(s)

Please wait...

Availability Price Buy Price Quantity

49

Ship by Mon. 02 Jun to Wed. 04 Jun

MOQ : 1
Multiples : 1

1 : USD 3.626
5 : USD 3.276
7 : USD 2.94
18 : USD 2.786

Specifications

Manufacturer

RADEMACHER RADEMACHER

Product Category

Copper Clad Boards Copper Clad Boards

Material

hard paper hard paper

Length

100 mm 100 mm

Width

160 mm 160 mm

Category

Copper Clad Boards Copper Clad Boards

Kind Of Board Clad

copper, light - sensitive coating copper, light - sensitive coating

Type Of Board

laminate laminate

Board Variant

single sided single sided

Copper Plating Thickness

35µm 35µm

Laminate Thickness

1.6mm 1.6mm

Notes:- Show Stocked Products With Similar Attributes.
