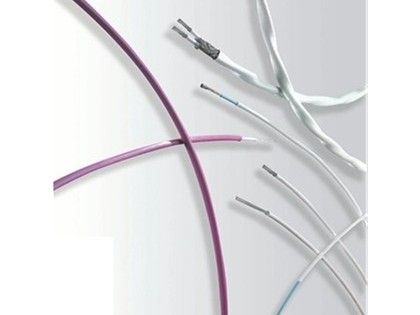

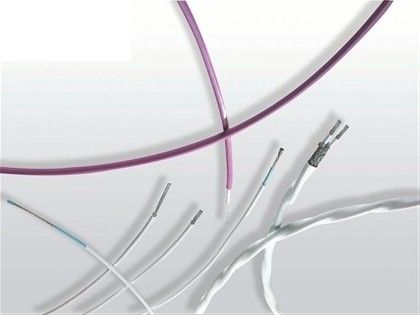

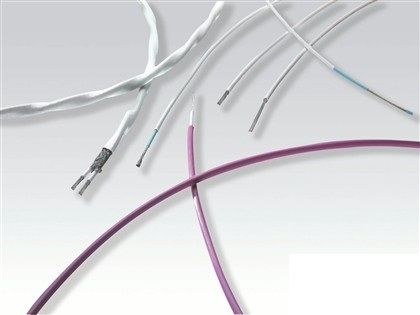

55FB1511 SPECIFICATION CONTROL DRAWING Date Revision TITLE ONE CONDUCTOR CABLE, SHIELDED, JACKETED, FILTER LINE - ELECTROLOSS 8-11-10 G This specification sheet forms a part of the latest issue of Raychem Specification 55F . JACKET - RADIATION-CROSSLINKED, COMPONENT WIRE - 55FA0511 SHIELD - TIN-COATED COPPER MODIFIED CONDUCTIVE ETFE CABLE CONSTRUCTION DETAILS JACKET FLEXURE JACKET THICKNESS OUTSIDE DIAMETER ENDURANCE CONDUCTOR SHIELD MAXIMUM PART NUMBER (in.) (in.) MANDREL SIZE SIZE WEIGHT 1/ DIAMETER (AWG) (AWG) (lbs/1000 ft.) (in.) ( 3%) MINIMUM NOMINAL NOMINAL MAXIMUM 55FB1511-22-* 22 38 .0060 .008 .083 .091 8.8 .125 55FB1511-20-* 20 38 .0060 .008 .091 .099 11.2 .125 55FB1511-18-* 18 38 .0060 .008 .102 .110 14.9 .250 55FB1511-16-* 16 38 .0060 .008 .110 .119 18.0 .250 55FB1511-14-* 14 38 .0060 .008 .127 .136 24.1 .250 55FB1511-12-* 12 38 .0060 .008 .143 .153 33.2 .250 55FB1511-10-* 10 38 .0060 .008 .169 .179 48.1 .250 CABLE RATINGS AND ADDITIONAL REQUIREMENTS TEMPERATURE RATING: 150C JACKET FLAWS: Not Applicable Maximum continuous conductor temperature JACKET FLEXURE ENDURANCE: 10 cycles, no cracking VOLTAGE RATING: 600 volts (rms) at sea level LIFE CYCLE: 200 3C for 168 hours BLOCKING: 200 3C for 6 hours LOW TEMPERATURE-COLD BEND: -65 2C for 4 hours CROSSLINKING PROOF TEST: 300 3C for 7 hours SHIELD COVERAGE: 85% (minimum) FLAMMABILITY: 3 seconds (maximum) 3 in. (maximum) VOLTAGE WITHSTAND (DIELECTRIC): no flaming of facial tissue Conductor to shield, 1500 volts (rms), 60 Hz FLUORIDE EXTRACTION: VOLTAGE WITHSTAND (Post Environmental): Not Applicable 70 2 C for 168 hours, 250 ppm (maximum) IDENTIFICATION AND COLOR STRIPING DURABILITY: PART NUMBER: 125 cycles (250 strokes) (minimum), 500 g weight The in the part numbers above shall be replaced by color code JACKET COLOR: Black designators with a dash separating the component wire color from JACKET ELONGATION AND TENSILE STRENGTH: the jacket color. Violet shall be light violet and the designator shall be 7L. Elongation, 50% (minimum) Example: AWG 22, light violet component wire, black jacket: Tensile Strength, 3500 lbf/in (minimum) 55FB1511-22-7L-0 NOTE: Nominal values are for information only. Nominal values are not requirements. This product meets or exceeds all requirements of SAE AS85485/12 for 22-10 AWG, less identification. Internal wire sizes 22-10 AWG meet or exceed all requirements of SAE AS85485/9, less identification. All other AWG sizes meet or exceed all requirements of SAE AS85485, less identification. Users should evaluate the suitability of this product for their application. Specifications are subject to change without notice. Tyco Electronics also reserves the right to make changes in materials or processing, which do not affect compliance with any specification, without notification to Buyer. 1/ COLORS AND COLOR CODE DESIGNATORS SHALL BE IN ACCORDANCE WITH MIL-STD-681. HOWEVER, DUE TO LENGTH LIMITATIONS OF THE RAYCHEM PART NUMBER, AN ALTERNATIVE COLOR CODE MAY REPLACE MIL-STD-681 COLOR CODE DESIGNATORS. (EXAMPLE: 901/902... MAY BE REPLACED BY Axxx.) OTHER CODES AND SUFFIXES MAY BE ADDED TO THE PART NUMBER AS NECESSARY, TO CAPTURE ANY ADDITIONAL REQUIREMENTS IMPOSED BY THE PURCHASE ORDER. The TE logo, Tyco Electronics, Electroloss and Raychem are trademarks. Raychem Wire & Cable 501 Oakside Avenue DIMENSIONS ARE IN INCHES, AND UNLESS OTHERWISE DESIGNATED ARE NOMINAL Redwood City, CA 94063-3800 Page 1 of 1 Phone: 1-800-227-8816 THIS SPECIFICATION SHEET TAKES PRECEDENCE OVER DOCUMENTS REFERENCED HEREIN. Fax: 1-650-361-6297 REFERENCED DOCUMENTS SHALL BE OF THE ISSUE IN EFFECT ON DATE OF INVITATION FOR BID. 2008-2010 Tyco Electronics Corporation. All rights reserved.X-ON Electronics Largest Supplier of Electrical and Electronic Components Click to view similar products for Hook-up Wire category: Click to view products by TE Connectivity manufacturer: Other Similar products are found below : 8918-BRN-1000 8920-DK-BLU-1000 CR6328-000 01776.38.01 M22759/16-14-5-500FT 7053-RED-1000 7053-SLATE-1000 F25935-000 F60898-000 8055 81044/12-18-9CS3209 82A0811-4-9-G110 83004-ORG-1000 83005-LT-BLU-1000 83025-VIO-1000 8523-RED-100 8524-WHT-100 8525-ORG-1000 8530-BLK-1000 8530-LT-BLU-100 8538-009-1000 8597-LT-BLU-100 8898-BLK-100 138498-000 E76065-000 EPD50886A-20-9 BFWUL3239-24-PINK C2015A.12.04 C2015A.12.05 C2015A.12.08 C2015A.12.10 C2015A.12.19 C2016A.12.05 C2016A.12.07 C2065A.12.02 C77653-000 220368-001 8916-GRY-500 8918-RED-100 8919-DK-BLU-1000 8919-YEL-100 8920-YEL-100 9242833001 933205-000 2841/7-YELLOW-1000 2842/7-ORANGE-100 2842/7-RED-1000 2843/19-BLUE-100 2843/1- YELLOW-100 2843/7-GREEN-100
