Product Information

56427 201 018

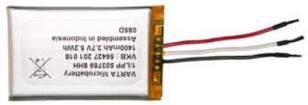

56427 201 018 electronic component of Varta

Datasheet
LI-ION/LI-POL BATTERY, 3.7V, 1.4AH
Manufacturer: Varta
This product is classified as Large/Heavy, additional shipping charges may apply. A customer service representative may contact you after ordering to confirm exact shipping charges



Price (USD)
N/A

Shipping Restricted

Read More Specifications


Manufacturer
Product Category
Battery Technology
Battery Capacity
Battery Voltage
Battery Size Code
Battery Terminals
External Diameter
External Height
External Width
External Depth
Weight
Battery Iec Code
Battery Neda Code
Product Range
Approvals Standards
Dc / Dc Converter Output Type
No Of Outputs
Output Current Max
Output Power Max
Output Voltage Nom
LoadingGif

Notes:- Show Stocked Products With Similar Attributes.

More Products By Manufacturer "Varta"

Image Description
56446702099 electronic component of Varta 56446702099

56446702099
Stock : 0

56455 701 099 electronic component of Varta 56455 701 099

BATTERY, LI-ION/LI-POL, 3.7V, 0.66AH
Stock : 0

56456 201 012 electronic component of Varta 56456 201 012

LI-ION/LI-POL BATTERY, 3.7V, 1.2AH
Stock : 0

56456 302 012 electronic component of Varta 56456 302 012

LI-ION/LI-POL BATTERY, 3.7V, 2.4AH
Stock : 0

56456 701 099 electronic component of Varta 56456 701 099

BATTERY, LI-ION/LI-POL, 3.7V, 1.2AH
Stock : 0

56457 201 012 electronic component of Varta 56457 201 012

LI-ION/LI-POL BATTERY, 3.7V, 1AH
Stock : 0

56455 201 012 electronic component of Varta 56455 201 012

LI-ION/LI-POL BATTERY, 3.7V, 0.66AH
Stock : 0

56456 702 099 electronic component of Varta 56456 702 099

BATTERY, LI-ION/LI-POL, 3.7V, 2.4AH
Stock : 0

56 703 101 404 electronic component of Varta 56 703 101 404

Re-battery: Ni-MH; AAA, R3; 1.2V; 800mAh; LONGLIFE; Package: blister
Stock : 0

56 706 101 404 electronic component of Varta 56 706 101 404

Re-battery: Ni-MH; AA; 1.2V; 2100mAh; LONGLIFE; Package: blister
Stock : 0

More Products By Category "Unclassified"

Image Description
ERJP14F2053U electronic component of Panasonic ERJP14F2053U

Thick Film Resistors - SMD 1210 205Kohms 0.5W 1% AEC-Q200
Stock : 4565

LR03FSB4 electronic component of Energizer LR03FSB4

BATTERY, AAA, ULTRA+, PK4 Price is per individual piece not per pack/tube
Stock : 0

AO6420 electronic component of Alpha & Omega AO6420

MOSFET N-CH 60V 4.2A 6TSOP
Stock : 5375

UZR53 electronic component of Panasonic UZR53

Proximity Sensor Other Npn 4Mm
Stock : 0

TA139 electronic component of Pico TA139

CLIPS, TEST, PK X10, PICOSCOPE 2205-MSO
Stock : 0

F327 IB electronic component of Savigny F327 IB

SPRING HANDLE, SMALL SIZE, S/STEEL
Stock : 0

LR03-L05M electronic component of Triton Controls LR03-L05M

FLOAT SWITCH, 5M CABLE
Stock : 286

UZR50 electronic component of Panasonic UZR50

INDUCTIVE HEAD 2.8 MM DIA 1.2MM IP50
Stock : 0

ERJP14F2050U electronic component of Panasonic ERJP14F2050U

Thick Film Resistors - SMD 1210 205ohms 0.5W 1% AEC-Q200
Stock : 0

TA-14.31818MBD-T electronic component of TXC Corporation TA-14.31818MBD-T

Standard Clock Oscillators 14.31818MHz 3.3V 25 ppm -40C to 85C
Stock : 0

Additional Infomation About Product

Product Information 1/LPP 503759 8HH PCM W VKB 56427 201 018 MM m onth two digits Y year one digit R week one digit Circuit Diagram 1. GENERAL Battery Pack in shrink sleeve incl. safety circuit & wires Cell L PP 503759 8HH PCM Y es NTC 10 k 1% B - va l u e 3 3 8 0 ID None C o n fi g u r a t i o n 1 S Weight appr. 25g 2. ELECTRICAL SPECIFICATION Rated Capacity 1320mAh min., 1400mAh typical Nominal Voltage 3.7V Watt-Hour Rating 5.2Wh Charging Method Constant Current + Constant Voltage Max. Charge Voltage: 4 . 2 V (50mV) Max. Continuous Charge Current: 19 8 0 m A ( l i m i t e d by c e l l D S) Rec. Charge Cut Off: 50mA or timer 2.5h Max. Continuous Discharge Current: 2000m A ( l i m i t e d by P C M) Rec. Discharge Cut Off: 3V Internal Impedance: a p p r ox . 10 0 m Exp. Cycle Life (1C / 0 . 5 C) 2 3 2C 5 0 0 c yc l e s 1098mAh CELL PROTECTION Overcharge Detection 4 . 2 75 V 2 5 mV (0 .7 t o 1. 3 s e c . d e l ay, r e s u m e 4 . 2 75 V 2 5 mV ) Overdischarge Detection: 2 . 3V 5 8 mV (14 t o 2 6 m s e c . d e l ay, r e s u m e 2 . 3V 5 8 mV ) Overcurrent Detection 2A t o 4 . 5 A (8 t o 16 m s e c . d e l ay discharge) 3. AMBIENT CONDITIONS Temperature Range C h a r g e 0 to +45C D i s c h a r g e -20 to +60C S t o r a g e C a p a c i t y Recovery Rate 1 m o n t h a t -10 t o + 4 5 C > 8 5% H u m i d i t y 65 20%RH 4. ENVIRONMENTAL AND SAFETY Please follow VARTA Handling and Safety Precautions for LiIon & LiPolymer. The cell used is a UL recognized component according to UL1642. This battery meets the requirements of Battery Directives and the battery parts are RoHS-Compliant. T h e b a t t e r y i s c e r t i fi e d a c c o r d i n g t o I EC 6 213 3 e d i t i o n 2 a n d U N 3 8 . 3 . Minimum Order Quantity: 600 pcs / Order Multiples: 120 pcs - Product for OEM customers only VARTA Storage GmbH - Rev No. 11 0116 715417 4 02 STFX-ON Electronics Largest Supplier of Electrical and Electronic Components Click to view similar products for varta manufacturer: Other Similar products are found below : 56456 702 099 18750 4114 210 501 4610 726 406 4122 210 511 LCD-CHARGER + 4XAA 2400MAH 449915B 4607 726 406 55171403014 55625603059 55615602940 4112101411 4 022 211 111 4 106 101 436 4 020 211 111 MINI CHARGER + 2XAA 2100MAH MINI-CHARGER 17730 LCD-SMART-CHARGER 414086X POCKET-CHARGER + 4XAA 2100MAH 458980A LCD MULTI CHARGER CG511-150-PB EE UNIVERSAL CHARGER CG401D-050-PB CG511-050-PB CU303-018-PB 413675G CG381D-G-100-PB CU202-030-PB 55615603059 CG381D-G-150-PB CG481G-050-PB CU303-030-PB CG511D-030-PB CA317-PB CU201G-B-030-PB 095668F 4600 726 406 CA418-PB CG481G-030-PB CG511D-100-PB CG511-030-PB CG511D-150-PB CG381D-G-050-PB CU302-030- PB CG341-030-PB CU201G-B-050-PB CA089-PB
