CTS13156X9020B2P

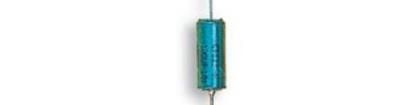

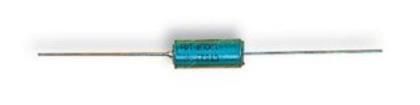

CTS1, CTS13, 749DX Vishay Sprague Hermetically Sealed, Axial-Lead to CECC Specifications FEATURES Terminations: Tin/lead (SnPb), 100 % tin (RoHS compliant) Hermetically sealed metal case with plastic film insulation Extended capacitance range (type 749DX) High operational stability with both time and temperature Low leakage current Low dissipation factor Compliant to RoHS directive 2002/95/EC APPLICATIONS Performance and reliability has been proven in a wide range of applications such as: filtering, by-pass, coupling, energy storage, timing circuits. PERFORMANCE CHARACTERISTICS SPECIFICATIONS Operating Temperature: CECC BS - 55 C to + 85 C (types CTS13) 30201-001 749DX 9073-N001 749DX - 55 C to + 125 C (types CTS1, 749DX) 30201-002 CTS1 30201-005 CTS13 30201-029 749DX ORDERING INFORMATION CTS13 105 X0 040 A 2 P E3 TYPE CAPACITANCE CAPACITANCE DC VOLTAGE RATING CASE STYLE PACKAGING ROHS TOLERANCE AT + 85 C CODE NUMBER COMPLIANT Identifies the Basic Expressed in X0 = 20 % Expressed in volts. See 0 = Bare See Taping E3 = 100 % tin Table Capacitor Design picofarads. First X9 = 10 % Where necessary, zeros Case and termination Ratings CTS1 = CECC 30201-002 two digits are X5 = 5 % precede the voltage 2 = Packaging (RoHS and CTS13 = CECC significant. Third (Special Order) rating to complete the Plastic-Film compliant) Case 30201-005 digit is the 3 digit block Insulation Blank = SnPb Codes. 749DX = CECC number of zeros 6R3 = 6.3 V termination 30201-001/029 following. DIMENSIONS in millimeters (1) 30 MIN. L MAX. 30 MIN. D MAX. d (1) 23 mm MAX. FOR TAPED CAPACITORS CASE BS NF + 10 % CODE D MAX. D MAX. L MAX. d - 0.05 A 3.6 3.8 10.2 0.5 B 4.9 5.1 15.0 0.5 C 7.5 7.7 20.5 0.6 D 9.1 9.3 24.0 0.6 * Pb containing terminations are not RoHS compliant, exemptions may apply Document Number: 42073 For technical questions, contact: tantalum vishay.com www.vishay.com Revision: 02-Nov-09 54CTS1, CTS13, 749DX Hermetically Sealed, Axial-Lead Vishay Sprague to CECC Specifications RATINGS AND CASE CODES - TYPE CTS1 RATED VOLTAGE U (+ 85 C) R 6.3 V 10 V 16 V 25 V 40 V 50 V 63 V C R F CATEGORY VOLTAGE U (+ 125 C) C 4 V 6.3 V 10 V 13 V 25 V 33 V 40 V 0.10 A 0.12 A 0.15 A 0.18 A 0.22 A 0.27 AA 0.33 AA 0.39 AA 0.47 AA A 0.56 AA A 0.68 AA A 0.82 AA B 1.0 AA B 1.2 AB B 1.5 ABBB 1.8 A BBB 2.2 A BBB 2.7 A BBB 3.3 A BBB 3.9 A BBB 4.7 A BBC 5.6 A B C C 6.8 A B C C 8.2 BCCC 10 BCCC 12 B CCD 15 B CCD 18 B CCD 22 B CD 27 B CD 33 B CD 39 B C D 47 B C D 56 B C D 68 CD 82 CD 100 CD 120 C D 150 C D 180 D 220 D 270 D 330 D Note Preferred ratings are in bold characters. Non-preferred ratings are available only with a capacitance tolerance of 10 % or 5 % (special order). www.vishay.com For technical questions, contact: tantalum vishay.com Document Number: 42073 55 Revision: 02-Nov-09
