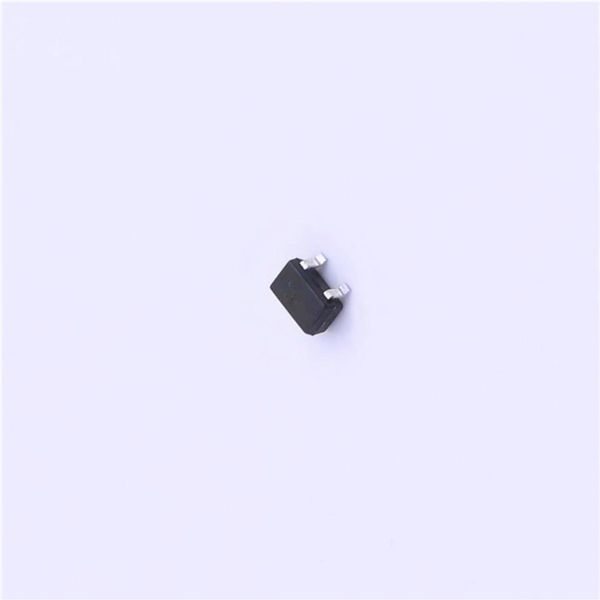

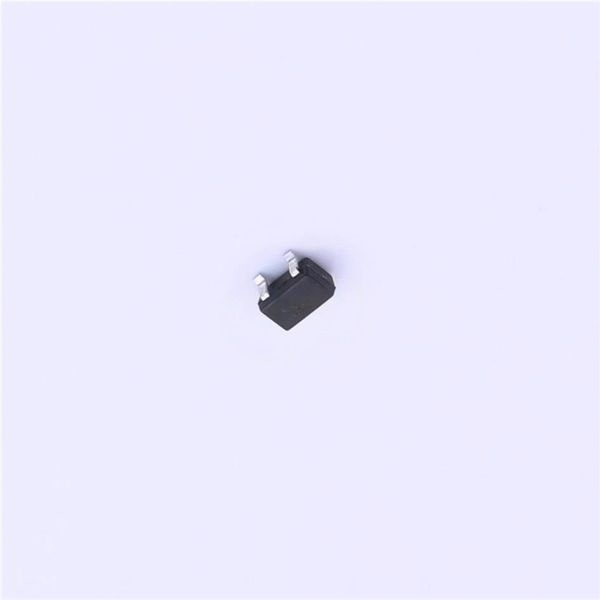

D1213A-02WL 2 CHANNEL LOW CAPACITANCE TVS DIODE ARRAY Features Mechanical Data IEC 61000-4-2 (ESD): Air 15kV, Contact 8kV Case: SOT323 2 Channels of ESD protection Case Material: Molded Plastic,Gree Molding Compound. UL Flammability Classification Rating 94V-0 Low Channel Input Capacitance of 0.85pF Typical Moisture Sensitivity: Level 1 per J-STD-020 Typically Used at High Speed Ports such as USB 2.0, IEEE1394, Serial ATA, DVI, HDMI, PCI Terminals: Matte Tin Finish annealed over Alloy 42 leadframe (Lead Free Plating). Solderable per MIL-STD-202, Method 208 Totally Lead-Free & Fully RoHS Compliant (Notes 1 & 2) Weight: 0.006 grams (Approximate) Halogen and Antimony Free. Green Device (Note 3) Qualified to AEC-Q101 Standards for High Reliability SOT323 CH 1 GND CH 2 Device Schematic Top View Ordering Information (Note 4) Part Number Case Packaging D1213A-02WL-7 SOT323 3,000/Tape & Reel Notes: 1. No purposely added lead. Fully EU Directive 2002/95/EC (RoHS) & 2011/65/EU (RoHS 2) compliant. 2. See D1213A-02WL Maximum Ratings ( T = +25C, unless otherwise specified.) A Characteristic Symbol Value Unit Conditions 8/20 s, Per Figure 3 Peak Pulse Current (Note 7) I 5 A PP ESD Protection Contact Discharge V 8 kV Standard IEC 61000-4-2 ESD Contact ESD Protection Air Discharge 15 kV Standard IEC 61000-4-2 V ESD Air Thermal Characteristics Characteristic Symbol Value Unit Package Power Dissipation (Note 5) P 200 mW D Thermal Resistance, Junction to Ambient (Note 5) R 625 C/W JA Operating and Storage Temperature Range T , T -65 to +150 C J STG Electrical Characteristics ( T = +25C, unless otherwise specified.) A Characteristic (Note 7) Symbol Min Typ Max Unit Test Conditions Reverse working voltage VRWM - - 3.3 V - Reverse current (Note 6) I - 0.1 1.0 A V = V = 3.3V R R RWM Reverse breakdown voltage VBR 6.0 - - V I = 1mA R Forward voltage V 0.6 0.8 0.95 V I = 8mA F F Reverse clamping voltage, Positive Transients V - 10.0 - V I = 1A, t = 8/20 s CL1 PP p Reverse clamping voltage, Negative Transients V - -1.7 - V I = -1A, t = 8/20s CL2 PP p Dynamic resistance R - 0.9 - I = 1A, t = 8/20s DYN R p Capacitance C - 0.85 1.2 pF V = 1.65V, f = 1MHz T R Notes: 5. Device mounted on FR-4 PCB pad layout (2oz copper) as shown on Diodes, Inc. suggested pad layout AP02001, which can be found on our website at
