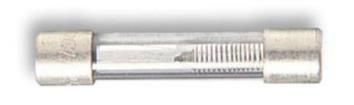

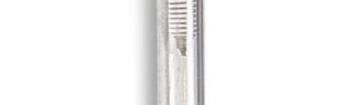

1/4 x 1-1/4 Fuses TDC Series, Glass Tube Description TDC10 Fast Acting 1/4 x 1-1/4 physical size Glass tube, electroplated brass endcap construction Interrupting rating equals 10 times rated current Designed to British Standard BS2950A TDC11 Time Delay mm Dimensions (inches) 1/4 x 1-1/4 physical size Glass tube, electroplated brass endcap construction 5.35mm35m Interrupting rating equals 10 times rated current Ordering Specify product code and packaging code 31.8mm31.8mm SPECIFICATIONS - TDC10 Voltage Interrupting Typical DC Cold Minimum Typical 2 Product Code Rating Rating* Resistance Melt It Voltage AC 1000V 750V 500V 350V 250V 150V 100V 32V (ohms)** AC Drop (mV) TDC10-50MA 1000V 500MA ---- - - - - - - TDC10-60MA 1000V 600MA ---- - - - - - - TDC10-100MA 1000V 1A ---- - - - - - - TDC10-150MA 1000V 1.5A ---- - - - - - - TDC10-250MA 1000V 2.5A ---- - - - - - - TDC10-500MA 750V - 5A - - - - - - - - - TDC10-750MA 500V - - 7.5A - - - - - - - - TDC10-1A 350V - - - 10A - - - - - - - TDC10-1.5A 250V ---- 15A - - - - - - TDC10-2A 250V ---- 20A - - - - - - TDC10-3A 250V ---- 30A - - - - - - TDC10-5A 250V ---- 50A - - - - - - TDC10-7A 150V ----- 70A -- - - - TDC10-10A 100V ----- - 100A - - - - TDC10-12A 32V ----- - - 120A - - - TDC10-15A 32V ----- - - 150A - - - TDC10-20A 32V ----- - - 200A - - - TDC10-25A 32V ----- - - 250A - - - SPECIFICATIONS - TDC11 Voltage Interrupting Typical DC Cold Minimum Typical 2 Product Code Rating Rating* Resistance Melt It Voltage AC 1000V 750V 500V 350V 250V 150V 100V (ohms)** AC Drop (mV) TDC11-50MA 1000V 500MA - - - - - - - - - TDC11-60MA 1000V 600MA - - - - - - - - - TDC11-100MA 1000V 1A - - - - - - - - - TDC11-150MA 1000V 1.5A - - - - - - - - - TDC11-250MA 1000V 2.5A - - - - - - - - - TDC11-500MA 750V - 5A - - - - - - - - TDC11-750MA 500V - - 7.5A - - - - - - - TDC11-1A 350V - - - 10A - - - - - - TDC11-1.5A 250V ---- 15A -- - - - TDC11-2A 250V ---- 20A -- - - - TDC11-3A 250V ---- 30A -- - - - TDC11-5A 250V ---- 50A -- - - - TDC11-7A 150V ---- - 70A - - - - TDC11-10A 100V ---- - - 100A - - - * Interrupting Rating: Interrupting rating is 10 times the rated current. ** DC Cold Resistance (Measured at <10% of rated current)1/4 x 1-1/4 Fuses TDC Series, Glass Tube TIME CURRENT CURVE TDC10 TDC11 100 100 10 10 1 1 .1 .1 .01 .01 TIMES RATED CURRENT TIMES RATED CURRENT PACKAGING CODE Packaging Code Description BK 100 pieces of fuses packed into a cardboard carton with flaps folded BK1 1,000 pieces of fuses packed into a cardboard carton with flaps folded OC-2602 10/01 Visit us on the Web at www.cooperET.com 3601 Quantum Boulevard Boynton Beach, Florida 33426-8638 Cooper Electronic Technologies 2001 Tel: +1-561-752-5000 Toll Free: +1-888-414-2645 Fax: +1-561-742-1178 This bulletin is intended to present product design solutions and technical information that will help the end user with design applications. Cooper Electronic Technologies reserves the right, without notice, to change design or construction of any products and to discontinue or limit distribution of any products. Cooper Electronic Technologies also reserves the right to change or update, without notice, any technical information contained in this bulletin. Once a product has been selected, it should be tested by the user in all possible applications. TIME IN SECONDS .1 1 10 100 TIME IN SECONDS .1 1 10 100
