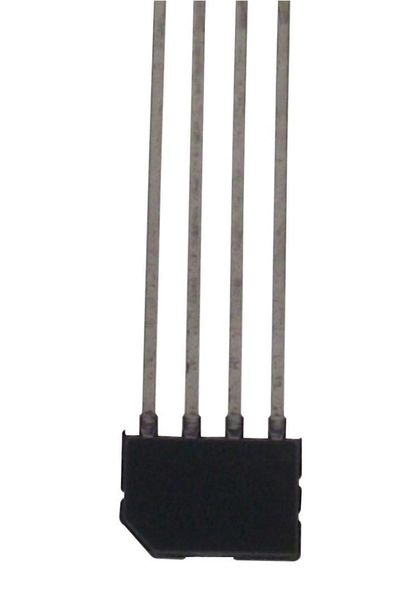

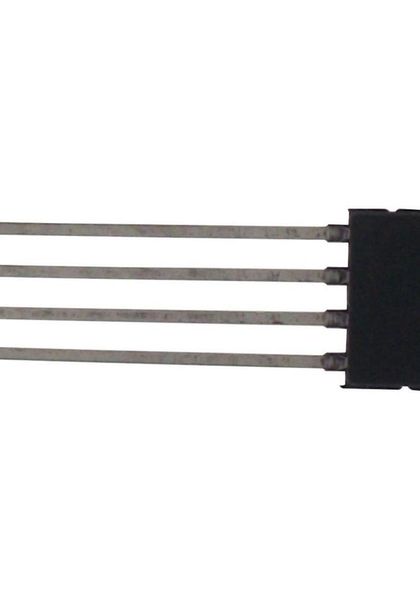

TLE49595UFXHALA1

TLE4959-5U FX FlexibleTransmission Speed Sensor Features Hall based differential speed sensor High magnetic sensitivity Large operating airgap Dynamic self-calibration principle Adaptive hysteresis Output protocol with and without direction of rotation detection High vibration suppression capabilities Three wire voltage interface Magnetic encoder and ferromagnetic wheel application High immunity against ESD, EMC and mechanical stress, improved voltage dropout capability Automotive operating temperature range End-of-line programmable to adjust transmission requirements Green Product (RoHS compliant) AEC Qualified Applications The TLE4959-5U FX is an integrated differential Hall speed sensor ideally suited for transmission applications. Its basic function is to provide information about rotational speed and direction of rotation to the transmission control unit. TLE4959-5U FX includes a sophisticated algorithm which actively suppresses vibration while keeping excellent airgap performance. Table1 Description Type Marking Ordering Code Package TLE4959-5U FX 59AYA1 SP001040496 PG-SSO-4-1 Data Sheet 1 1.0 www.infineon.com/sensors 2018-07TLE4959-5U FX FlexibleTransmission Speed Sensor Description The TLE4959-5U FX comes in a RoHs compliant four-pin package, qualified for automotive usage. the recommended capacitors increase the EMC robustness of the device. In 12V applications it is further recommended to use a serial resistor R for protection on the supply line. A pull-up resistor R is Supply Load mandatory on the output pin and determines the maximum current flowing through the output transistor. A value of 1.2 k is recommended for the 5V application. (see Figure 1) Option for 12V V pullup V S R LOAD R Supply R Q 1.2 k 100 ...330 V DD 150 ... 220 I Q CVDD Q GND 100...470nF V CQ Q 1.8 ... 4.7nF Figure1 Typical Application Circuit Data Sheet 2 1.0 2018-07
