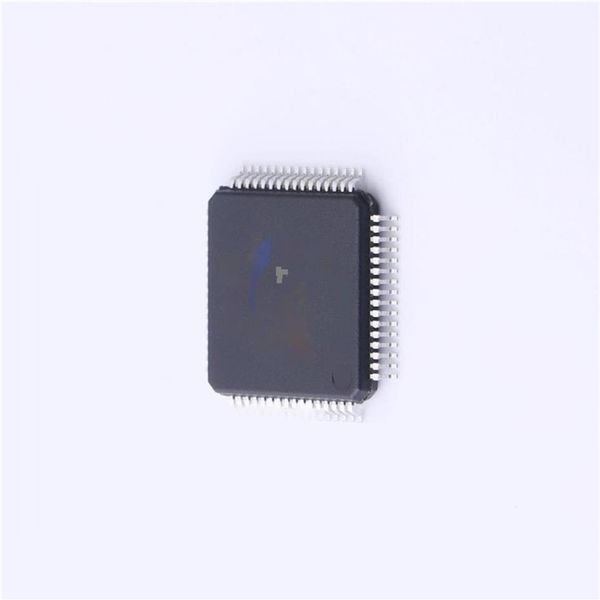

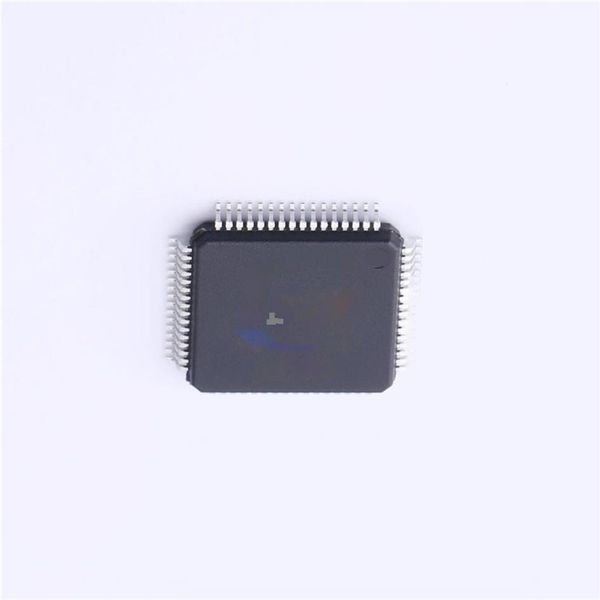

LPC2131/32/34/36/38 Single-chip 16/32-bit microcontrollers 32/64/128/256/512 kB ISP/IAP flash with 10-bit ADC and DAC Rev. 5.1 29 July 2011 Product data sheet 1. General description The LPC2131/32/34/36/38 microcontrollers are based on a 16/32-bit ARM7TDMI-S CPU with real-time emulation and embedded trace support, that combine the microcontroller with 32 kB, 64 kB, 128 kB, 256 kB and 512 kB of embedded high-speed flash memory. A 128-bit wide memory interface and a unique accelerator architecture enable 32-bit code execution at maximum clock rate. For critical code size applications, the alternative 16-bit Thumb mode reduces code by more than 30 % with minimal performance penalty. Due to their tiny size and low power consumption, these microcontrollers are ideal for applications where miniaturization is a key requirement, such as access control and point-of-sale. With a wide range of serial communications interfaces and on-chip SRAM options of 8 kB, 16 kB, and 32 kB, they are very well suited for communication gateways and protocol converters, soft modems, voice recognition and low-end imaging, providing both large buffer size and high processing power. Various 32-bit timers, single or dual 10-bit 8-channel ADC(s), 10-bit DAC, PWM channels and 47 GPIO lines with up to nine edge or level sensitive external interrupt pins make these microcontrollers particularly suitable for industrial control and medical systems. 2. Features and benefits 2.1 Enhancements brought by LPC213x/01 devices Fast GPIO ports enable port pin toggling up to 3.5 times faster than the original LPC213x. They also allow for a port pin to be read at any time regardless of its function. Dedicated result registers for ADC(s) reduce interrupt overhead. UART0/1 include fractional baud rate generator, auto-bauding capabilities and handshake flow-control fully implemented in hardware. Additional BOD control enables further reduction of power consumption. 2.2 Key features common for LPC213x and LPC213x/01 16/32-bit ARM7TDMI-S microcontroller in a tiny LQFP64 or HVQFN64 package. 8/16/32 kB of on-chip static RAM and 32/64/128/256/512 kB of on-chip flash program memory. 128-bit wide interface/accelerator enables high-speed 60 MHz operation. In-System Programming/In-Application Programming (ISP/IAP) via on-chip bootloader software. Single flash sector or full chip erase in 400 ms and programming of 256 B in 1 ms. EmbeddedICE RT and Embedded Trace interfaces offer real-time debugging with the on-chip RealMonitor software and high-speed tracing of instruction execution.LPC2131/32/34/36/38 NXP Semiconductors Single-chip 16/32-bit microcontrollers One (LPC2131/32) or two (LPC2134/36/38) 8-channel 10-bit ADCs provide a total of up to 16 analog inputs, with conversion times as low as 2.44 s per channel. Single 10-bit DAC provides variable analog output (LPC2132/34/36/38). Two 32-bit timers/external event counters (with four capture and four compare channels each), PWM unit (six outputs) and watchdog. Low power Real-time clock with independent power and dedicated 32 kHz clock input. 2 Multiple serial interfaces including two UARTs (16C550), two Fast I C-bus (400 kbit/s), SPI and SSP with buffering and variable data length capabilities. Vectored interrupt controller with configurable priorities and vector addresses. Up to forty-seven 5 V tolerant general purpose I/O pins in tiny LQFP64 or HVQFN package. Up to nine edge or level sensitive external interrupt pins available. 60 MHz maximum CPU clock available from programmable on-chip PLL with settling time of 100 s. On-chip integrated oscillator operates with external crystal in range of 1 MHz to 30 MHz and with external oscillator up to 50 MHz. Power saving modes include Idle and Power-down. Individual enable/disable of peripheral functions as well as peripheral clock scaling down for additional power optimization. Processor wake-up from Power-down mode via external interrupt or BOD. Single power supply chip with POR and BOD circuits: CPU operating voltage range of 3.0 V to 3.6 V (3.3 V 10 %) with 5 V tolerant I/O pads. 3. Ordering information Table 1. Ordering information Type number Package Name Description Version LPC2131FBD64/01 LQFP64 plastic low profile quad flat package 64 leads SOT314-2 body 10 10 1.4 mm LPC2132FBD64/01 LQFP64 plastic low profile quad flat package 64 leads SOT314-2 body 10 10 1.4 mm LPC2132FHN64/01 HVQFN64 plastic thermal enhanced very thin quad flat SOT804-2 package no leads 64 terminals body 9 9 0.85 mm LPC2134FBD64/01 LQFP64 plastic low profile quad flat package 64 leads SOT314-2 body 10 10 1.4 mm LPC2136FBD64/01 LQFP64 plastic low profile quad flat package 64 leads SOT314-2 body 10 10 1.4 mm LPC2138FBD64/01 LQFP64 plastic low profile quad flat package 64 leads SOT314-2 body 10 10 1.4 mm LPC2138FHN64/01 HVQFN64 plastic thermal enhanced very thin quad flat SOT804-2 package no leads 64 terminals body 9 9 0.85 mm LPC2131 32 34 36 38 All information provided in this document is subject to legal disclaimers. NXP B.V. 2011. All rights reserved. Product data sheet Rev. 5.1 29 July 2011 2 of 45
