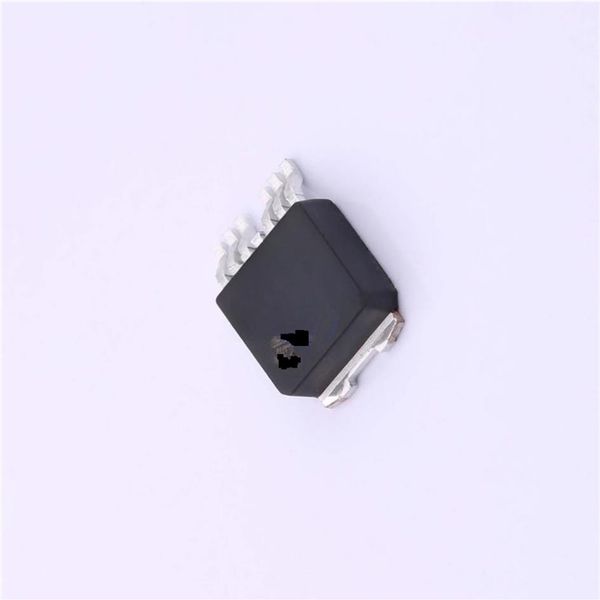

VN5R003HTR-E STMicroelectronics

VN5R003H-E 3 m reverse battery protection switch Datasheet production data Features Max supply voltage V -16 to 41 V CC Operating voltage range V -16 to 28 V CC On-state resistance R 3m ON GA P GCFT00135 HPak General Optimized electromagnetic emissions Description Very low electromagnetic susceptibility The VN5R003H-E is a device made using Compliant with European directive STMicroelectronics VIPower technology. It is 2002/95/EC intended for providing reverse battery protection Protections to an electronic module. Automatic switch off in case of negative This device has two power pins (Drain and input voltage Source) and a control pin IN. If the IN voltage Electrostatic discharge protection versus Drain is negative the device is turned on. A negative voltage of Drain pin versus IN Application automatically turns off the device. When IN is left Reverse battery protection of an electronic open, device is in OFF-state and behaves like a control unit power diode between Source and Drain pins. Table 1. Device summary Order codes Package Tube Tape and reel HPAK VN5R003H-E VN5R003HTR-E September 2013 Doc ID 17602 Rev 6 1/20 This is information on a product in full production. www.st.com 1Contents VN5R003H-E Contents 1 Block diagram and pin description . 5 2 Electrical specifications 7 2.1 Absolute maximum ratings . 7 2.2 Thermal data . 8 2.3 Electrical characteristics . 8 3 Application information . 11 4 Package and PC board thermal data . 12 4.1 HPAK thermal data 12 5 Package and packing information . 15 5.1 ECOPACK . 15 5.2 HPAK mechanical data . 15 5.3 HPAK suggested land pattern . 17 5.4 Packing information . 17 6 Revision history . 19 2/20 Doc ID 17602 Rev 6
