X-On Electronics has gained recognition as a prominent supplier of HSBA4204 MOSFETs across the USA, India, Europe, Australia, and various other global locations. HSBA4204 MOSFETs are a product manufactured by HUASHUO. We provide cost-effective solutions for MOSFETs, ensuring timely deliveries around the world.

HSBA4204 HUASHUO

Name: HSBA4204
Brand: HUASHUO
SKU: HSBA4204_HUASHUO
Availability: InStock
Rating: 5 (11 reviews)

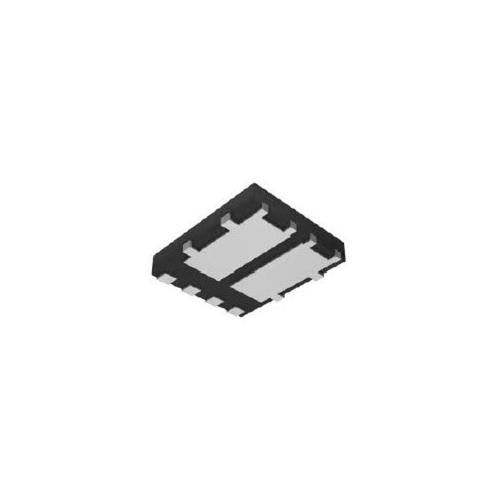

HSBA4204 electronic component of HUASHUO

Images are for reference only
See Product Specifications

Part No.	HSBA4204
Manufacturer:	HUASHUO
Category:	MOSFETs
Description:	40V 30A 11.5mΩ@10V,6A 2W 2.5V@250uA 88pF@15V 2 N-Channel 1.314nF@15V 10.7nC@4.5V -55℃~+150℃@(Tj) PRPAK5x6 MOSFETs ROHS
Datasheet:	HSBA4204 Datasheet (PDF)
	Large This product is classified as Large/Heavy, additional shipping charges may apply. A customer service representative may contact you after ordering to confirm exact shipping charges

Price (USD)

5: USD 0.6356 ea
Line Total: USD 3.18

Availability - 368
Ship by Fri. 27 Jun to Wed. 02 Jul

MOQ: 5 Multiples: 5
Pack Size: 5

HSBA4204 More Buying Options & Price Grid(s)

Please wait...

Availability Price Buy Price Quantity

368

Ship by Fri. 27 Jun to Wed. 02 Jul

MOQ : 5
Multiples : 5

5 : USD 0.6356
50 : USD 0.3851
150 : USD 0.3117
500 : USD 0.2439
3000 : USD 0.2237
6000 : USD 0.2128

Specifications

Manufacturer

HUASHUO HUASHUO

Product Category

MOSFETs MOSFETs

Category

MOSFET MOSFET

Rohs

y y

Drain Source Voltage Vdss

40 V 40 V

Continuous Drain Current Id

30 A 30 A

Drain Source On Resistance Rdson@Vgs Id

11.5 mOhms @10V , 6A 11.5 mOhms @10V , 6A

Power Dissipation Pd

2 W 2 W

Gate Threshold Voltage Vgsth@Id

2.5 V @250uA 2.5 V @250uA

Reverse Transfer Capacitance Crss@Vds

88 pF @15V 88 pF @15V

Type

2 N - Channel 2 N - Channel

Input Capacitance Ciss@Vds

1.314 nF @15V 1.314 nF @15V

Total Gate Charge Qg@Vgs

10.7 nC @4.5V 10.7 nC @4.5V

Operating Temperature

- 55 C ~ + 150 C @ (Tj) - 55 C ~ + 150 C @ (Tj)

Notes:- Show Stocked Products With Similar Attributes.
