X-On Electronics has gained recognition as a prominent supplier of DMTH4014LPDQ-13 MOSFETs across the USA, India, Europe, Australia, and various other global locations. DMTH4014LPDQ-13 MOSFETs are a product manufactured by Diodes Incorporated. We provide cost-effective solutions for MOSFETs, ensuring timely deliveries around the world.

DMTH4014LPDQ-13 Diodes Incorporated

Name: DMTH4014LPDQ-13
Brand: Diodes Incorporated
SKU: DMTH4014LPDQ13_Diodes_Incorporated
Availability: InStock
Rating: 5 (11 reviews)

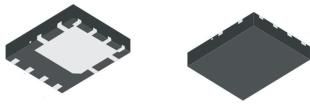

DMTH4014LPDQ-13 electronic component of Diodes Incorporated

Images are for reference only
See Product Specifications

Part No.	DMTH4014LPDQ-13
Manufacturer:	Diodes Incorporated
Category:	MOSFETs
Description:	MOSFET MOSFET BVDSS: 31V-40V
Datasheet:	DMTH4014LPDQ-13 Datasheet (PDF)
	Large This product is classified as Large/Heavy, additional shipping charges may apply. A customer service representative may contact you after ordering to confirm exact shipping charges

Price (USD)

1: USD 1.0462 ea
Line Total: USD 1.05

Availability - 2333
Ship by Mon. 12 May to Wed. 14 May

MOQ: 1 Multiples: 1
Pack Size: 1

DMTH4014LPDQ-13 More Buying Options & Price Grid(s)

Please wait...

Availability Price Buy Price Quantity

1821

Ship by Wed. 21 May to Mon. 26 May

MOQ : 1
Multiples : 1

1 : USD 0.7524
10 : USD 0.679
30 : USD 0.641
100 : USD 0.4089
500 : USD 0.3942
1000 : USD 0.3852

2333

Ship by Mon. 12 May to Wed. 14 May

MOQ : 1
Multiples : 1

1 : USD 1.0462
10 : USD 0.822
100 : USD 0.5456
250 : USD 0.5445
500 : USD 0.4719
1000 : USD 0.4312
2500 : USD 0.3729
5000 : USD 0.3718

Specifications

Manufacturer

Diodes Incorporated Diodes Incorporated

Product Category

MOSFETs MOSFETs

Id - Continuous Drain Current

43.6 A 43.6 A

Vds - Drain-Source Breakdown Voltage

40 V 40 V

Rds On - Drain-Source Resistance

15 mOhms 15 mOhms

Transistor Polarity

N - Channel N - Channel

Vgs th - Gate-Source Threshold Voltage

1 V 1 V

Minimum Operating Temperature

- 55 C - 55 C

Maximum Operating Temperature

+ 175 C + 175 C

Pd - Power Dissipation

3.5 W 3.5 W

Mounting Style

Smd/Smt Smd/Smt

Package / Case

Powerdi5060 - 8 Powerdi5060 - 8

Packaging

Cut Tape Cut Tape

Technology

Si Si

Number of Channels

1 Channel 1 Channel

Vgs - Gate-Source Voltage

20 V 20 V

Qg - Gate Charge

10.2 nC 10.2 nC

Channel Mode

Enhancement Enhancement

Qualification

Aec - Q101 Aec - Q101

Configuration

Single Single

Series

Dmth4014 Dmth4014

Brand

Diodes Incorporated Diodes Incorporated

Fall Time

1.8 ns 1.8 ns

Product Type

Mosfet Mosfet

Rise Time

5.7 ns 5.7 ns

Factory Pack Quantity :

2500 2500

Subcategory

Mosfets Mosfets

Typical Turn-Off Delay Time

8.7 ns 8.7 ns

Typical Turn-On Delay Time

3.5 ns 3.5 ns

Notes:- Show Stocked Products With Similar Attributes.
