X-On Electronics has gained recognition as a prominent supplier of ASDM20N90Q-R MOSFETs across the USA, India, Europe, Australia, and various other global locations. ASDM20N90Q-R MOSFETs are a product manufactured by Ascend. We provide cost-effective solutions for MOSFETs, ensuring timely deliveries around the world.

ASDM20N90Q-R Ascend

Name: ASDM20N90Q-R
Brand: Ascend
SKU: ASDM20N90QR_Ascend
Availability: InStock
Rating: 5 (11 reviews)

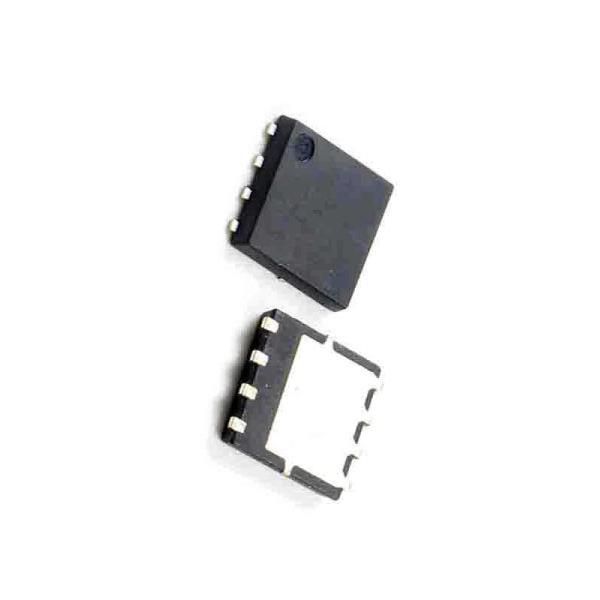

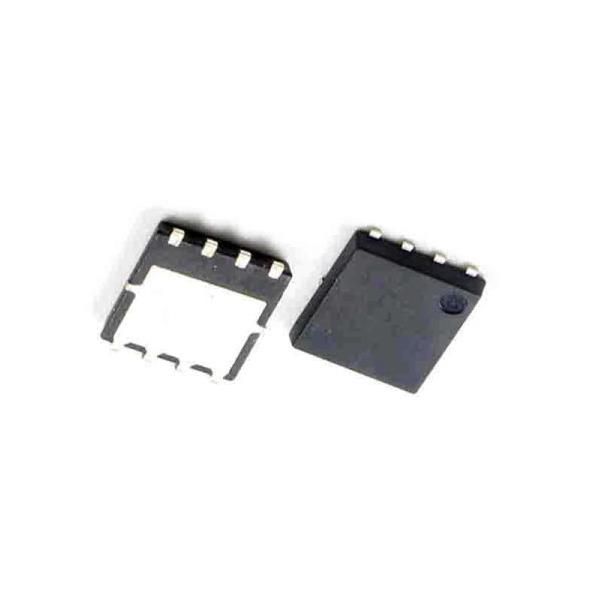

ASDM20N90Q-R electronic component of Ascend

Images are for reference only
See Product Specifications

Part No.	ASDM20N90Q-R
Manufacturer:	Ascend
Category:	MOSFETs
Description:	20V 90A 1.5mΩ@10V,30A 40W 0.75V@250uA 365pF@10V N Channel 3605pF@10V 36.6nC@10V -55℃~+150℃@(Tj) PDFN5x6-8 MOSFETs ROHS
Datasheet:	ASDM20N90Q-R Datasheet (PDF)
	Large This product is classified as Large/Heavy, additional shipping charges may apply. A customer service representative may contact you after ordering to confirm exact shipping charges

Price (USD)

5: USD 0.3668 ea
Line Total: USD 1.83

Availability - 683
Ship by Wed. 25 Jun to Mon. 30 Jun

MOQ: 5 Multiples: 5
Pack Size: 5

ASDM20N90Q-R More Buying Options & Price Grid(s)

Please wait...

Availability Price Buy Price Quantity

683

Ship by Wed. 25 Jun to Mon. 30 Jun

MOQ : 5
Multiples : 5

5 : USD 0.3668
50 : USD 0.289
150 : USD 0.1918
500 : USD 0.1446
2500 : USD 0.1188
4000 : USD 0.1114

Specifications

Manufacturer

Ascend Ascend

Product Category

MOSFETs MOSFETs

Category

MOSFET MOSFET

Rohs

y y

Drain Source Voltage Vdss

20 V 20 V

Continuous Drain Current Id

90 A 90 A

Drain Source On Resistance Rdson@Vgs Id

1.5 mOhms @10V , 30A 1.5 mOhms @10V , 30A

Power Dissipation Pd

40 W 40 W

Gate Threshold Voltage Vgsth@Id

0.75 V @250uA 0.75 V @250uA

Reverse Transfer Capacitance Crss@Vds

365 pF @10V 365 pF @10V

Type

N Channel N Channel

Input Capacitance Ciss@Vds

3605 pF @10V 3605 pF @10V

Total Gate Charge Qg@Vgs

36.6 nC @10V 36.6 nC @10V

Operating Temperature

- 55 C ~ + 150 C @ (Tj) - 55 C ~ + 150 C @ (Tj)

Notes:- Show Stocked Products With Similar Attributes.
