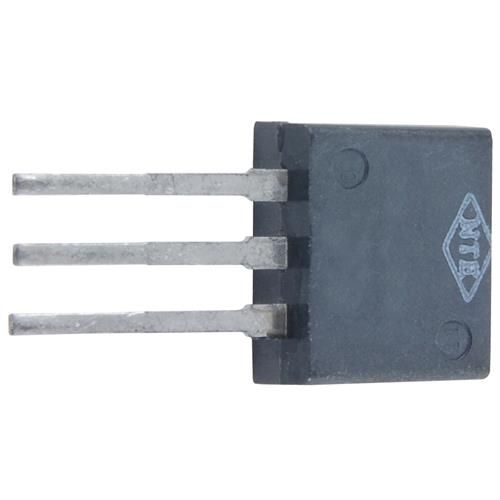

NTE2590 Silicon NPN Transistor High Voltage Amp/Switch Features: High Breakdown Voltage, High Reliability Low Output Capacitance Wide ASO Range Absolute Maximum Ratings: (T = +25C unless otherwise specified) A CollectorBase Voltage, V . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1700V CBO CollectorEmitter Voltage, V . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 900V CEO EmitterBase Voltage, V . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5V EBO Collector Current, I C Continuous . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50mA Peak . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 150mA Collector Power Dissipation, P . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1.2W C Operating Junction Temperature, T . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . +150C J Storage Temperature Range, T . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 55 to +150C stg Electrical Characteristics: (T = +25C unless otherwise specified) A Parameter Symbol Test Conditions Min Typ Max Unit Collector Cutoff Current I V = 900V, I = 0 1.0 A CBO CB E Emitter Cutoff Current I V = 4V, I = 0 1.0 A EBO EB C DC Current Gain h V = 5V, I =2mA 20 50 120 FE CE C GainBandwidth Product f V = 10V, I = 2mA 6 MHz T CE C Output Capacitance C V = 100V, f = 1MHz 2.0 pF ob CB Collector Emitter Saturation Voltage V I = 5mA, I = 1mA 5 V CE(sat) C B Base Emitter Saturation Voltage V I =5A, I = 1mA 2 V BE(sat) C B Collector Base Breakdown Voltage V I = 1mA, I = 0 1700 V (BR)CBO C E Collector Emitter Breakdown Voltage V I = 1mA, R = 900 V (BR)CEO C BE Emitter Base Breakdown Voltage V I = 1mA, I = 0 5 V (BR)EBO E C.177 (4.5) .402 (10.2) .035 (0.9) .051 (1.3) .346 (8.8) BC E .433 (11.0) .019 (0.5) .100 (2.54)
